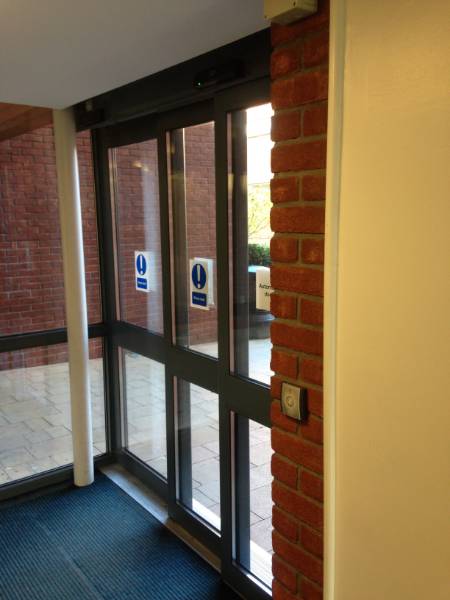

Automatic Sliding Door - ASSA ABLOY SL520 F Telescopic

Verified by manufacturer 5 months ago

FAAC Entrance Solutions UK

Automatic sliding door designed primarily for narrow passageways.

Jump to:
+44 (0)333 006 3443 Website

Application

High traffic and where shopping trolleys are passing in and out.

Description

Automatic sliding door designed primarily for narrow passageways. It provides a solution where space is limited and consists of a rugged design. The system comprises of doors, openers and safety units. Most models can be supplied with or without side screens and over-lights, and are suitable for beam or wall mounting installations. Can be supplied as bi-parting and single sliding where required. All models can be tailored to suit contract specific requirements. Options include the provision of thermally broken profiles and various glazing types on request.


Features and benefits:

  • Designed to maximise the opening width in narrow passageways.
  • Range of colours and accessories available.
  • Wall or beam mounted.

General information

Color

-

Manufacturer guidance

Range of colours available, consult manufacturer.

Finish

Anodized

Powder-coated

Material

Aluminium

Glass

Length

Bespoke

Width

165 mm

Height

150 mm

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/490 Automatic doors

Specification data - Sliding door and partition sets

Arrangement

Beam mounted four door leaves bi-parting with two side screens.

Beam mounted two door leaves sliding left with one side screen.

Beam mounted two door leaves sliding right with one side screen.

Wall mounted four door leaves bi-parting.

Wall mounted two door leaves sliding left.

Wall mounted two door leaves sliding right.

Wall mounted four door leaves bi-parting with two side screens.

Wall mounted two door leaves sliding left with one side screen.

Wall mounted two door leaves sliding right with one side screen.

Door leaves

-

Construction

Aluminium and glass.

Finish and colour

Anodized.

ASSA ABLOY Standard RAL.

Guidance for specification option:

Consult manufacturer and insert details.

Non-standard RAL.

Guidance for specification option:

Consult manufacturer and insert details.

Operation

Automatic

Hardware

Interlocking between two opener.

Electromechanical locking devices.

Mechanical lock.

Accessories

None.

Activation and threshold presence sensor.

Electronic emergency opening or closing unit.

Emergency button.

Key switch.

Side screen presence detection

Programme selectors.

Overlights.

Guidance for specification option:

Beam mounted doors only.

Sidelights.

Product Reference

Automatic Sliding Door - ASSA ABLOY SL520 F Telescopic

Sustainability data

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.02 kg CO₂ eq/unit

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Automatic Sliding Door SL520

Automatic Sliding Door SL520
