Automatic Rising Bollard
Description

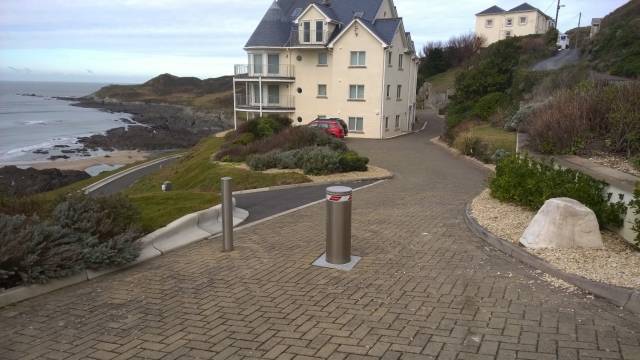

Designed to control the access of vehicles to residential areas and commercial properties, AUTOPA’s Automatic Bollards are manufactured from high quality stainless or galvanised steel. These bollards are available in diameters of 127 or 275 mm and heights of 600 or 800 mm to suit customer needs. All AUTOPA Automatic Bollards are compatible with a variety of different control mechanisms including remote controls, keypads and swipe cards. AUTOPA recommends that bollards are placed no further than 1200 mm apart to ensure no vehicle may pass between them.

General information

Uniclass 2015

Pr_20_76_08_12 Carbon steel rising bollardsPrimary

CAWS

Q50/192 Collapsible/ Telescopic bollards

Q50/30 Street furniture

Specification data - Carbon steel rising bollards

Product Reference

138105215

Galvanised Automatic Rising Bollard, 127 mm diameter, 600 mm tall.

138105225

Galvanised Automatic Rising Bollard, 275 mm diameter, 600 mm tall.

138105205

Galvanised Automatic Rising Bollard, 127 mm diameter, 800 mm tall.

138105235

Galvanised Automatic Rising Bollard, 275 mm diameter, 800 mm tall.

138105220

Stainless Steel Automatic Rising Bollard, 127 mm diameter, 600 mm tall.

138105230

Stainless Steel Automatic Rising Bollard, 275 mm diameter, 600 mm tall.

138105210

Stainless Steel Automatic Rising Bollard, 127 mm diameter, 800 mm tall.

138105240

Stainless Steel Automatic Rising Bollard, 275 mm diameter, 800 mm tall.

Reinforcement

Not required

Required

Standard product features

Height:

  • Above ground: 600 or 800 mm.
  • Below ground: 1100 mm.

Wall thickness:

6 mm.

Weight:

  • Automatic rising bollard, 127 mm diameter, 600 mm tall: 80.0 kg.
  • Automatic rising bollard, 275 mm diameter, 600 mm tall: 114.0 kg.
  • Automatic rising bollard, 127 mm diameter, 800 mm tall: 90.0 kg.
  • Automatic rising bollard, 275 mm diameter, 800 mm tall: 124.0 kg.
  • Housing pit, 127 mm diameter, 600 mm tall: 30.0 kg.
  • Housing pit, 275 mm diameter, 600 mm tall: 62.0 kg.
  • Housing pit, 127 mm diameter, 800 mm tall: 32.0 kg.
  • Housing pit, 275 mm diameter, 800 mm tall; 66.0 kg.

Product Options

Control options:

A range of control options are available extra, including remote controls, swipe cards and keypads.

Colour/ Finish:

Galvanized finish as standard. Colour coated and stainless steel options are available (please state RAL/BS numbers for colour coated versions).
