This product is no longer available

Description

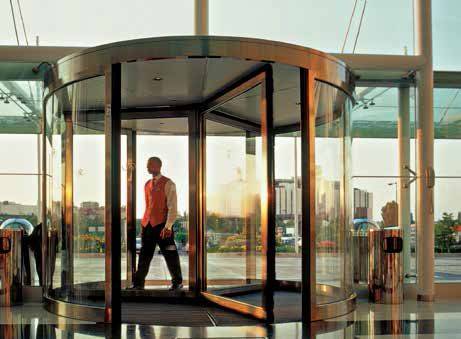

Automatic access control revolving door available with three or four wings. Designed to interface with the building's main access control system to control traffic into and, if required, out of the building.

The doors can be specified in several different configurations. Two options are available for the outer drum and three different types of door leaves to choose from. Depending on the rail and panel options selected, the doors can provide varying degrees of privacy. Units are also available in various sizes with flexible internal height and fascia height to match existing structures. Doors are manufactured of aluminium profiles from either the Slim or Frame range, profiles can be anodized, powder coated or clad with stainless steel. The revolving door system is controlled with a CDC control system which ensures low operating and maintenance costs, highest safety and best operational performance.

Features:

  • Automatic drive.
  • Control unit built in behind the fascia.
  • Microprocessor controlled with plug in modules and LED status lights.
  • Speed control.
  • Compressible rubber safety nosings with electronic switches to the leading mullions of the curved outer walls.
  • White laminate ceiling panels.
  • Integrated locking access control system.

General information
Features

Automatic drive

Control unit built in behind the fascia

Microprocessor controlled with plug in modules and LED status lights

Speed control

Compressible rubber safety nosings with electronic switches to the leading mullions of the curved outer walls

White laminate ceiling panels

Integrated locking access control system

Uniclass 2015 Automatic revolving doorsets (Pr_30_59_24_04)
Specification data
Product Reference

ASSA ABLOY RD3A1

Three doors.

ASSA ABLOY RD4A1

Four doors, one way.

ASSA ABLOY RD4A2

Four doors, two way.

Diameter (internal)

1800 mm

2100 mm

2400 mm

AccessWidth

793 mm

RD3A1 three leaf only.

943 mm

RD3A1 three leaf only.

1093 mm

RD3A1 three leaf only.

1191 mm

RD4A1 or RD4A2 four leaf only.

1403 mm

RD4A1 or RD4A2 four leaf only.

1615 mm

RD4A1 or RD4A2 four leaf only.

Height -
Fascia

200–1250 mm. Insert requirements.

Internal

2100–2600 mm. Insert requirements.

Frame -
Profile

Frame

Slim

Finish/ colour

Bronze anodized

Clear anodized

Powder coated, RAL

Available powder coated in a range of RAL colours. Insert requirements.

Stainless steel clad

1.4401 (316) grade, finishes; brushed/ 240 grit/ bright polished/ mirror No. 8.

Infill curved outer walls

Fully clad

Laminated glass

Sheet metal sandwich panel

Door leaf glazing

Frame design

Laminated.

Slim design

Laminated, toughened.

Accessories

None

ASSA ABLOY activators recessed behind the canopy fascia

Anti-tailgating feature

Automatic night closing doors

Barrier matting aluminium profiles with carpet inserts (black)

Barrier matting aluminium profiles with rubber inserts (black)

Compressible rubber safety nosings with electronic switches to the door wing leading vertical edges

Compressible rubber safety nosings with electronic switches to the door wing bottom horizontal edges

Electromechanical lock

Emergency break out system, including electro mechanical release

Ground ring to suit door diameter to form a matwell (matting not included)

GSM modem for remote service diagnostic and operational support

Manual night closing doors

Mechanical lock on night closing doors

Midrails on door leaves

Midrails on outer walls

Non-touch safety sensors placed horizontally on the door wing top rail protect the door leaf leading edge and face

Non-touch sensors placed vertically in front of the compressible safety nosings of each leading entrance mullion

Rotation brake

Six downlights

Six spotlights

Slow speed push button

Water resistant cover

Standard product features

Height (excluding fascia):

2200 mm.

Power supply:

100-240 V, 50–60 Hz.

Power consumption:

400 W.

Lighting:

12 V, 120 W.

Main fuse:

10 A.
