Description

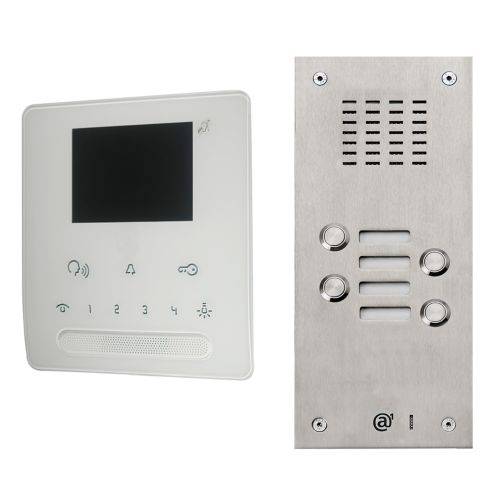

A range of audio-visual entry panels, available flush or surface-mounted, and offer multiple call buttons with illuminated name windows.

General information
Specification data - Intercom entrance panels
Product Reference

71630

Secure internal audio visual hands free monitor.

71633

Secure internal audio visual hands free monitor.

71660

Secure audio entry panel with one call button.

71661

Secure audio entry panel with two call buttons.

71662

Secure audio entry panel with three call buttons.

71663

Secure audio entry panel with four call buttons.

71664

Secure audio entry panel with one call button and access control reader aperture.

71665

Secure audio entry panel with two call buttons and access control reader aperture.

71666

Secure audio entry panel with three call buttons and access control reader aperture.

71667

Secure audio entry panel with four call buttons and access control reader aperture.

71668

Secure audio entry panel with digital dial keypad.

71669

Secure audio entry panel with digital dial keypad and access control reader aperture.

71670

Secure audio visual entry panel with one call button.

71671

Secure audio visual entry panel with two call buttons.

71672

Secure audio visual entry panel with three call buttons.

71673

Secure audio visual entry panel with four call buttons.

71674

Secure audio visual entry panel with one call button and access control reader aperture.

71675

Secure audio visual entry panel with two call buttons and access control reader aperture.

71676

Secure audio visual entry panel with three call buttons and access control reader aperture.

71677

Secure audio visual entry panel with four call buttons and access control reader aperture.

71678

Secure audio visual panel with digital dial keypad.

71679

Secure audio visual panel with digital dial keypad and access control reader aperture.

Product Options

Product reference:

- 71630:

Secure internal audio visual hands free monitor.

  • Easy to install and program, to be used with any external panel ref 71670 to 71679.
  • 3.5” high-resolution LCD display.
  • Simple two-wire operation.
  • Private conversation.
  • Duplex voice operation.
  • Capacitive touch screen controls.
  • Doorbell input with distinct tone.
  • Easy to install and program.
  • Surface mounted.
  • Size (h x w x d): 150 x 131 x 25 mm.

- 71633:

Secure internal audio visual hands free monitor.

  • To be used with external panel ref 71670 to 71679.
  • Simple two-wire operation.
  • 7” LCD display and 16:9 widescreen aspect ratio.
  • Keypad with 8 backlit buttons.
  • Suitable for flush wall mount or desktop installation (flush box and desk kit sold separately).
  • Size (h x w x d): 157 x 192 x 49 mm,

- 71660:

Secure audio entry panel with one call button.

  • Allgood Secure flush mount audio entry panel with 1 call button.
  • Requires one no. XX7166SU audio speech module (supplied separately).
  • Connects to any Allgood Secure audio handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 274 x 130 x 50 mm.

- 71661:

Secure audio entry panel with two call buttons.

  • Requires one no. XX7166SU audio speech module (supplied separately).
  • Connects to any Allgood Secure audio handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 274 x 130 x 50 mm.

- 71662:

Secure audio entry panel with three call buttons.

  • Requires one no. XX7166SU audio speech module (supplied separately).
  • Connects to any Allgood Secure audio handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 274 x 130 x 50 mm.

- 71663:

Secure audio entry panel with four call buttons.

  • Requires one no. XX7166SU audio speech module (supplied separately).
  • Connects to any Allgood Secure audio handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 274 x 130 x 50 mm.

- 71664:

Secure audio entry panel with one call button and access control reader aperture.

  • Requires one no. XX7166SU audio speech module (supplied separately).
  • One no. industry standard 40 x 40 mm aperture to suit Allgood Secure panel mount access control reader (note: reader not included).
  • Connects to any Allgood Secure audio handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 274 x 130 x 50 mm.

- 71665:

Secure audio entry panel with two call buttons and access control reader aperture.

  • Requires one no. XX7166SU audio speech module (supplied separately).
  • One no. industry standard 40 x 40 mm aperture to suit Allgood Secure panel mount access control reader (note reader not included).
  • Connects to any Allgood Secure audio handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 274 x 130 x 50 mm.

- 71666:

Secure audio entry panel with three call buttons and access control reader aperture.

  • Requires one no. XX7166SU audio speech module (supplied separately).
  • One no. industry standard 40 x 40 mm aperture to suit Allgood Secure panel mount access control reader (note reader not included).
  • Connects to any Allgood Secure audio handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 274 x 130 x 50 mm.

- 71667:

Secure audio entry panel with four call buttons and access control reader aperture.

  • Requires one no. XX7166SU audio module (supplied separately).
  • One no. industry standard 40 x 40 mm aperture to suit Allgood Secure panel mount access control reader (note reader not included).
  • Connects to any Allgood Secure audio handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 330 x 130 x 50 mm.

- 71668:

Secure audio entry panel with digital dial keypad.

  • Grade 316 satin stainless steel panel.
  • Digital dial keypad with backlit LCD panel display.
  • High resistance against vandalism and physical abuse.
  • Connects to any Allgood secure audio handset using two-wire technology.
  • Bespoke engraving available upon request.

- 71669:

Secure audio entry panel with digital dial keypad and access control reader aperture.

  • Grade 316 satin stainless steel panel.
  • Digital dial keypad with backlit LCD panel display.
  • High resistance against vandalism and physical abuse.
  • Connects to any Allgood Secure handset using two-wire technology.
  • 40 x 40 mm aperture to suit Allgood Secure panel mounted access control reader (reader not included).
  • Bespoke engraving available upon request.

- 71670:

Secure audio visual entry panel with one call button.

  • Requires one no. XX7166C colour camera and speech module (supplied separately).
  • Connects to any Allgood Secure audio-visual handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 320 x 130 x 50 mm.

- 71671:

Secure audio visual entry panel with two call buttons.

  • Requires one no. XX7166C colour camera and speech module (supplied separately).
  • Connects to any Allgood Secure audio-visual handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 330 x 130 x 50 mm.

- 71672:

  • Secure audio visual entry panel with three call buttons.
  • Requires 1 no. XX7166C colour camera and speech module (supplied separately).
  • Connects to any Allgood Secure audio-visual handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 330 x 130 x 50 mm.

- 71673:

Secure audio visual entry panel with four call buttons.

  • Requires one no. XX7166C colour camera and speech module (supplied separately).
  • Connects to any Allgood Secure audio-visual handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 330 x 130 x 50 mm.

- 71674:

Secure audio visual entry panel with one call button and access control reader aperture.

  • Requires one no. XX7166C colour camera and speech module (supplied separately).
  • One no. industry standard 40 x 40 mm aperture to suit Allgood Secure panel mount access control reader (note reader not included).
  • Connects to any Allgood Secure audio-visual handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 330 x 130 x 50 mm.

- 71675:

Secure audio visual entry panel with two call buttons and access control reader aperture.

  • Requires one no. XX7166C colour camera and speech module (supplied separately).
  • One no. industry standard 40 x 40 mm aperture to suit Allgood Secure panel mount access control reader (note reader not included).
  • Connects to any Allgood Secure audio-visual handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 330 x 130 x 50 mm.

- 71676:

Secure audio visual entry panel with three call buttons and access control reader aperture.

  • Requires one no. XX7166C colour camera and speech module (supplied separately).
  • One no. industry standard 40 x 40 mm aperture to suit Allgood Secure panel mount access control reader (note reader not included).
  • Connects to any Allgood Secure audio-visual handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 402 x 130 x 50 mm.
  • Bespoke engraving available upon request.

- 71677:

Secure audio visual entry panel with four call buttons and access control reader aperture.

  • Requires one no. XX7166C colour camera and speech module (supplied separately).
  • One no. industry standard 40 x 40 mm aperture to suit Allgood Secure panel mount access control reader (note reader not included).
  • Connects to any Allgood Secure audio-visual handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 402 x 130 x 50 mm.

- 71678:

Secure audio visual panel with digital dial keypad.

  • Supplied with colour camera, speech and digital dial keypad with backlit LCD panel display.
  • Connects to any Allgood Secure audio-visual handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 320 x 210 x 50 mm.

- 71679:

Secure audio visual panel with digital dial keypad and access control reader aperture

  • Supplied with colour camera, speech and digital dial keypad with backlit LCD panel display.
  • One no. industry standard 40 x 40 mm aperture to suit Allgood Secure panel mount access control reader (note reader not included).
  • Connects to any Allgood Secure audio-visual handset using two-wire technology.
  • Grade 316 stainless steel.
  • Satin finish.
  • High resistance against vandalism and physical abuse.
  • Bespoke engraving available upon request.
  • Size (h x w x d): 320 x 210 x 50 mm.
