Application

Factory security outdoor areas, sports and leisure facilities, outdoor pools.

Description

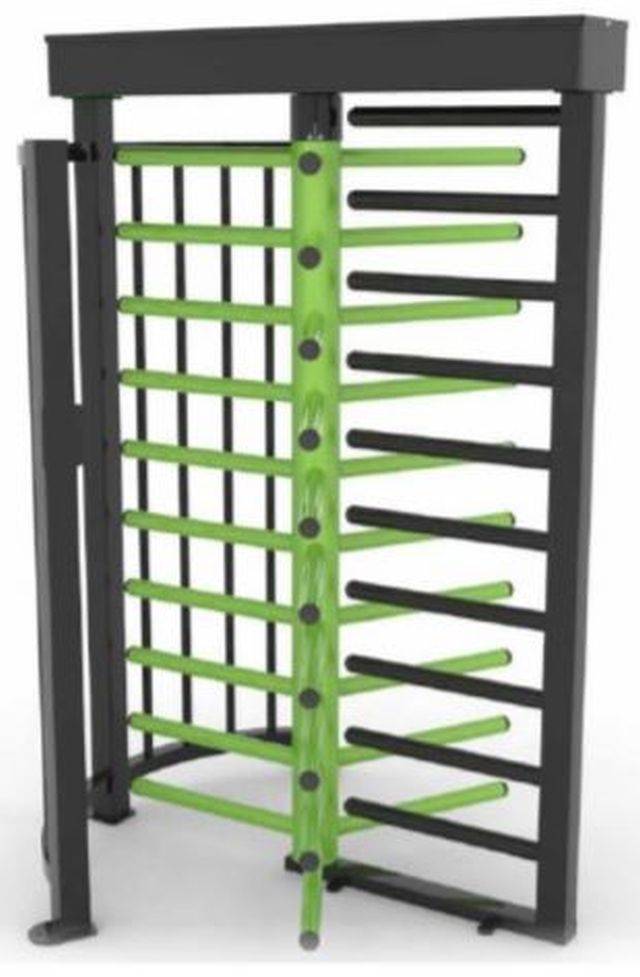

Motor-driven, full-height single turnstile.

Application:

Factory security outdoor areas, sports and leisure facilities, outdoor pools.

General information
Features

Fail safe control, intercom, keypad, downlight, electrical motor driven

Finish

Polished stainless steel barrier bars, channelling elements and uprights, polished stainless steel, hot galvanised steel or powder coated bridge

Material

Carbon steel

Size

2225 x 1505 mm

Uniclass 2015
Carbon steel full-height turnstiles (Pr_30_59_34_13)Primary
Specification data - Carbon steel full-height turnstiles
Product Reference

Atlas Eco Single

Rotation

Freely rotating

Control unit

Card reader, operating panel, button

Frame

Powder-coated, RAL

Insert colour requirement.

Primed

Finish - Rotor

As frame

Powder-coated, RAL

Insert colour requirement.

Primed

Operating temperature

-25 to +50°C

Function

Clearance signal in direction of entry and exit using potential-free contact

Barrier elements

120° arrangement

Rotor

120 mm diameter tube with bottom support bearing

Type

40 mm diameter tube with domed capped ends

Duty cycle

100% continuous duty rating

Flowrate

15–22 people/ minute in a single direction

Accessories

None

Bespoke signage

Canopy light

Canopy with gutter

Direction flow indicator light

Siren

Standard product features

Material:

Frame and motor are fully welded, heavy-duty steel components for maximum strength and longevity, and the rotor pivots on a sealed roller bearing.

Size:

2225 x 1505 mm.

Clear walkway width:

600 mm.

Clear head height:

2070 mm.

Electricity supply:

230 V, 50–60 Hz.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
