Atlas 2/ Welded Steel Sliding Gates
Compare variants

Atlas 2/ Welded Steel Sliding Gates

Heras Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

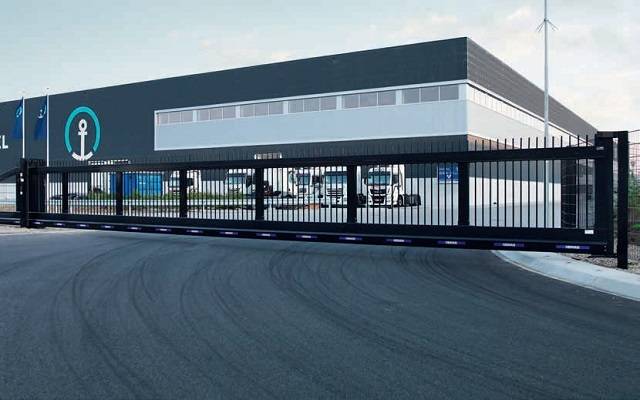

Entrance control/ strong welded steel sliding gate for industrial use, with a maximum opening between posts of up to 18 metres.

Jump to:
+44 (0)808 164 2250 www.heras.co.uk

Application

Suitable for busy commercial and industrial locations such as port entrances and factories.

Description

Strong welded steel sliding gate for industrial use. The 18 m maximum opening between posts provides a 17.6 m free opening. Available with a strong electric motor drive. Easily customized with corporate styling (colour and logo) and optional extra security features if required.

The gate frame is constructed of square hollow section steel with various infill options including perforated sheets, welded-mesh (Pallas) and vertical bars (Athos and Atlas). Polyamide support/ guide wheels and heavy-duty roller bearings ensure smooth and easy movement. All moving components are concealed within the bottom beam for safety and protection against the elements.

The gate is delivered as a pre-assembled module, making it quick and economical to install with no training needed. This means little or no disruption to any business through restricted access during installation and service.


Features and benefits:

  • DOP-certified for safety.
  • Up to 18 m opening width.
  • Delivered fully pre-assembled.
  • Very strong welded steel framework.
  • Available in a variety of infills.

General information

Finish

Epoxy primer

Material

Steel

Uniclass 2015

Pr_30_59_34_14 Carbon steel gatesPrimary

CAWS

Pr_30_59_34_14 Loose laid gas retardant damp proofing

Primary

Q40/45 Gates

Q40/560 Steel

Q40/570 Gates

Specification data - Carbon steel gates Enhanced data

Dimensions

-

Height

1000–2500 mm.

Finish as delivered

-

Worked finish

Epoxy primer 2K (60 microns DFT) and top layer 2K (100 microns DFT).

Product Reference

Atlas 2

Accessories

None.

Cameras.

Company logo.

Insert requirements.

Flashing lights.

Safety cut-off mechanisms.

Infill

Perforated sheets.

Vertical bars.

Welded-mesh.

Colour

RAL 6005 (moss green).

RAL 7016 (anthracite grey).

RAL 7030 (stone grey).

RAL 9006 (white aluminium).

RAL 9010 (pure white).

Show more

Third-party certification

DoC (EN 13241; EN 12453; EN 12445; EN-IEC 60335-1; EN-IEC 60335-2-103), Machine directive (2006/42/EC), Construction Products Regulation (305/2011), EMC directives (2014/30/EU), Wind class 2.

Bearing bars

Triple sealed, heavy duty (marine grade lubricant).

Frame

Steel.

Power supply

230 V a.c., 400–800 W.

Speed

0.2 m/s.

Operating temperature

-20 to +55°C.

Profile

140 x 140 mm.

Post profile.

Size (w x h)

16000 x 2500 mm.

Width

14 001–16 000 mm.

Literature

Large cantilever sliding gate

Large cantilever sliding gate

Third party certifications

  • Declaration of Performance (DoP): EN 13241
