Atik Monobloc Contemporary Kitchen Mixer Tap
Application

Kitchen mixer tap suitable for sink and worktop mounting.

Description

Square only in form, the Atik mixer tap offers precision water control courtesy of new quarter turn valve developments.


Features and benefits:

  • Minimalist planate design form.
  • Metal construction throughout.
  • Leading design performance requiring higher pressures.
  • Quarter turn handle action for precise flow control.
  • Antisplash spout supplied as standard.


General information

Color

Silver

Atik Monobloc - Chrome.

Black

Atik Monobloc - Matt Black (granite).

Grey

Atik Monobloc - Brushed Nickel.

Finish

Matt

Atik Monobloc - Matt Black (granite).

Chrome

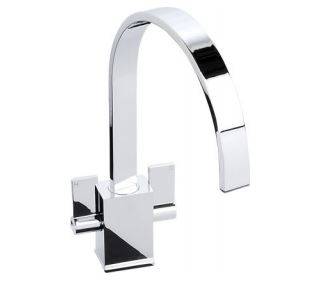

Atik Monobloc - Chrome.

Brushed

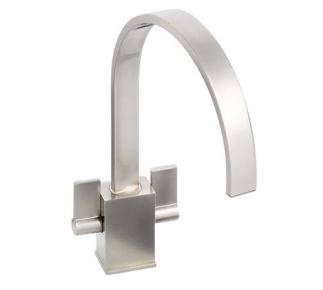

Atik Monobloc - Brushed Nickle.

Material

Brass

Size

346 mm

Overall Height / projection.


Exit reach: 233 mm.

Exit height: 217 mm.

Base diameter(s): 58 x 48mm.

Recommended hole diameter: Ø 35 mm.

Max. surface depth: 50 mm.

WarrantyDescription

Five year

Materials and workmanship defects and valves and working parts warranted for five years.


Surface warranty defects and O-rings, hoses & gaskets warranted for one year.

Uniclass 2015

Pr_40_20_87_84 Sink taps

Primary

CAWS

N11/350 Sinks, taps, traps and wastes

Specification data - Sink taps Enhanced data

Approval

Water Regulations Advisory Scheme (WRAS) approved.

Form

Mixer taps.

Materials

-

Body

Brass.

Finish and colour

Chrome plated.

Brushed brass.

Matt black.

Flow rate (maximum)

19.80 L/min 3 bars.

Water supply temperature (maximum)

User controlled.

Integral accessories

Triangular stabilizer.

Product Reference

Atik Monobloc - Matt Black (granite)

Atik Monobloc - Chrome

Atik Monobloc - Brushed Brass

Water pressure

0.40 - 5.5 bar.

Non-return valve

Hot and cold.

Integral to tails.

ConnectionType

Grub screw.

InletConnectionSize

1/2".

Tail pipe inlet / outlet size: M12 / 1/2" BSP Male.

Type/ pipe diameter

Flexible stainless braided hose.

Length

245 mm.

Weight

2.14 kg.

Accessories

2.5 and 2mm Allen key.
