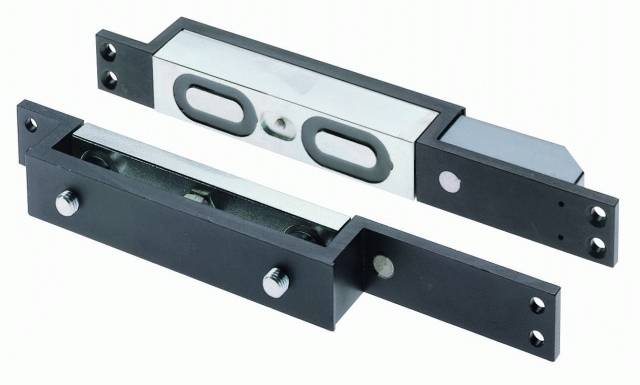

ASSA Shearmagnet M8031X002

Description

Suitable for applications where the highest level of security is paramount, including security and perimeter doors. Supplied with armature plate and screw fixings and will accept a range of power inputs.

Features:

  • True fail-safe operation.
  • 1 500 kg holding force.
  • Mortice fixing.
  • Available as standard with Hall Effect microswitch to monitor that the magnet is active.
  • Accepts 12 V or 24 V DC. Power usage 1.5 A (12 V), 700 mA (24 V).
  • Continuously rated.
  • Satin aluminium finish.

Additional information for this product is available from - http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644354

General information

Features

True fail-safe operation

1 500 kg holding force

Mortice fixing

Available as standard with Hall Effect microswitch to monitor that the magnet is active

Accepts 12 V or 24 V DC. Power usage 1.5 A (12 V), 700 mA (24 V)

Show more

Finish

Satin aluminium

Uniclass 2015

Pr_75_30_27_51 Magnetic shear locks and strike platesPrimary

Product range

ASSA Electric Locking / ASSA Magnets

Specification data - Magnetic shear locks and strike plates

Product Reference

M8031X002

Standard product features

Finish:

Satin aluminium.
