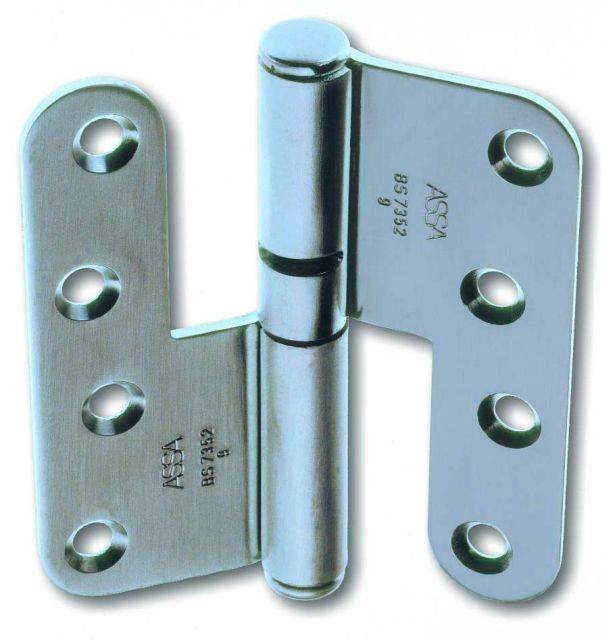

ASSA Journal Supported

Description

A range of hinges for general applications.

All products:

  • Manufactured from grade CS4 rolled steel (except 3228-St/St).
  • Journal-supported lift-off hinges. Right and Left handed.
  • Approved for use on fire doors.
  • Supplied with 1 1/4" x 10 g full threaded countersunk wood screws, except 3211-1 which is supplied with 4.5 x 25 mm countersunk wood screws.
  • Product 249 adjustment disc may be inserted into each hinge knuckle to raise the door.

- 3211-1:

  • Maximum adjusted door weight: 120 kg.

- 3220:

  • Tested and approved to BS 1935 Grade 11 (Heavy Duty).
  • Maximum adjusted door weight: 80 kg.

- 3228:

  • Tested and approved to BS 1935 Grade 13 (Severe Duty).
  • Maximum adjusted door weight: 120 kg.

- 3228-St/St:

  • Tested and approved to BS 1935 Grade 1.4301 (304) S15 Stainless steel hinge for use in severe environments.
  • Grade 13 (Severe Duty).
  • Maximum adjusted door weight: 120 kg.

- 3248:

  • Tested and approved to BS 1935 Grade 13 (Severe Duty).
  • Maximum adjusted door weight: 120 kg.
  • Allows symmetrical routing.
  • 3248-05 variant with integral 10 mm diameter security dog bolt.

- 3278:

  • Tested and approved to BS 1935 Grade 14 (Severe Duty).
  • Maximum adjusted door weight: 160 kg.

- 3288:

  • Tested and approved to BS 1935 Grade 14 (Severe Duty).
  • Allows symmetrical routing.
  • Maximum adjusted door weight: 160 kg.

Additional information for these products is available from - http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644410

General information

Uniclass 2015

Pr_30_36_36_79 Single axis door hingesPrimary

CAWS

P21/310 Single axis door hinges

Specification data - Single axis door hinges

Product Reference

3211-1

3220

3228

3228 St/St

3248

3248-05

3278

3278
