Application

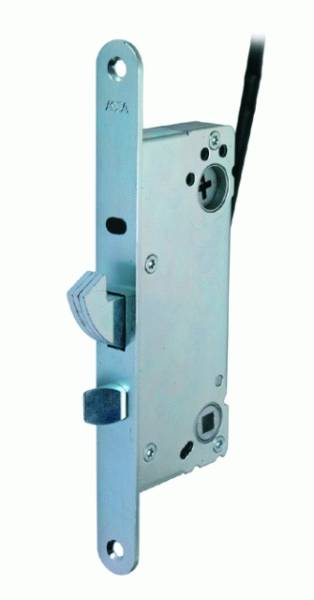

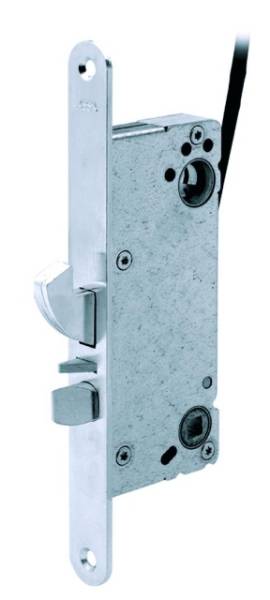

ASSA Connect solenoid handle locks are particularly suitable for use in high traffic applications where both reliability and security are major considerations. Suitable for security applications such as perimeter doors, entrance doors, gates and other applications within industry, office and trading premises as well as entrance doors and common areas within residential premises. ASSA Connect solenoid handle locks are suitable for fire doors.

Description

Application:

ASSA Connect solenoid handle locks are particularly suitable for use in high traffic applications where both reliability and security are major considerations. Suitable for security applications such as perimeter doors, entrance doors, gates and other applications within industry, office and trading premises as well as entrance doors and common areas within residential premises. ASSA Connect solenoid handle locks are suitable for fire doors.

Function:

Latchbolt operated by lever handles once the correct opening signal is received. Key or thumbturn also operates latch.

Features:

  • Deadlocked when door is closed.
  • Mechanical override by key or thumbturn.
  • 50 or 70 mm backset option.
  • Connectors fitted to all wires to adapt with accompanying connecting cable.
  • Supplied with 1487-2 striking plate.

- Multifunctional:

  • 12–24 V multivoltage (DC continuously rated).
  • Fail locked: Can easily be converted to fail unlocked on site.

- Monitoring microswitches:

  • Anti thrust bolt.

Suitable cylinders:

Scandinavian oval or round:

  • ASSA 5-Pin.
  • ASSA Flexcore Plus.
  • ASSA 4800.
  • ASSA Twin Combi.
  • ASSA dp4400.
  • ASSA CLIQ.

Additional information for this product is available from - http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644342

General information

Uniclass

Pr_30_36_08_84 Special function door locksPrimary
Pr_30_36_08_84 Special function door locksPrimary

CAWS

P21/26 Special function door locks

P21/530 Special function door locks

Product range

ASSA Electric Locking / ASSA Connect Electric Locks

Specification data - Special function door locks

Product Reference

Connect 880

Backset

50 mm

70 mm

Colour/ Finish

Bright zinc

Standard.

Satin chrome

Special.
