ASSA 1900PE
Description

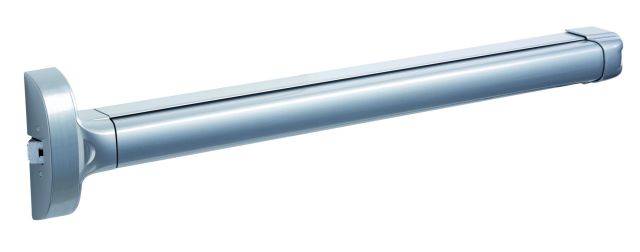

Push bars with choice of single, two-point or three-point locking. Vertical locking shoots are concealed within a surface-mounted housing. Light-action push plate. Easy to specify and install. Incorporates automatic deadlocking. Options available include external locking devices, extended width and key dogging.

Product has been successfully type-tested for conformity to all the requirements of BS EN 1125. Regular audit testing is undertaken.

Additional information for this product is available from - http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644399&productId=644401

General information

Uniclass 2015

Pr_30_36_08_63 Panic exit devicesPrimary

CAWS

P21/32 Panic exit devices

P21/577 Panic exit devices

Specification data - Panic exit devices

Product Reference

1910PE

Single point locking.

1920PE

Two-point locking.

1930PE

Three-point locking.

1940PE

Three-point locking (three lateral bolts).

1950PE

Three-point locking (two lateral bolts and one top vertical locking shoot bolt).

Width

850 mm

Suits 500–1300 mm door width.

1150 mm

Suits 1300–1900 mm door width.

Accessories

Not required

Microswitch, 104187 000 00

Product Options

Product reference:

Key dogging – Bolts held in retraction position by key. Must be specified before unit is supplied. Add ref. DC. Not recommended for fire doors.
