NBS Source

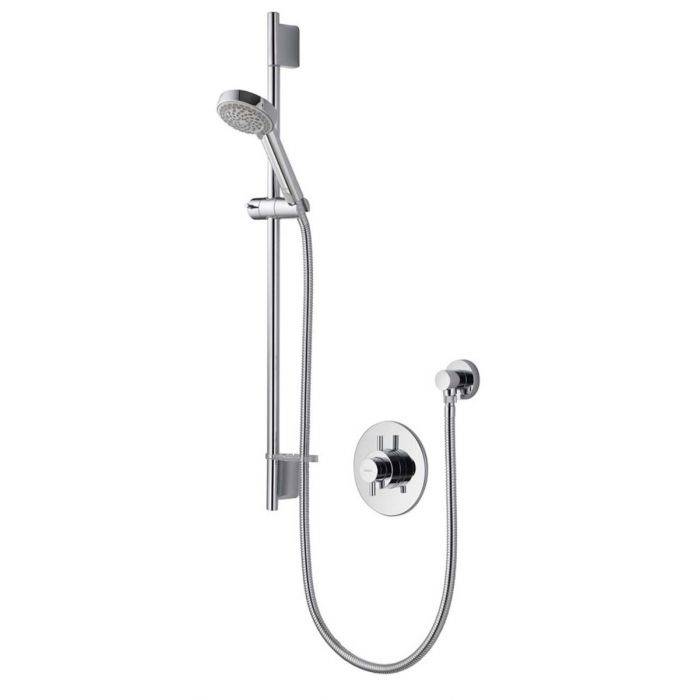

Aspire DL Concealed Mixer Shower with Adjustable Head

Application

Suitable for all water systems.

Description

Brass valve with chrome finish. Separate flow and temperature controls and adjustable 105 mm multi-mode Harmony showerhead with four spray patterns. Eco spray setting delivers up to 25% water saving. Easy to install with adjustable inlet centres and suits all approved domestic UK water systems.


Features and benefits:

  • 105 mm Harmony shower head.
  • All-metal valve.
  • Dual lever controls for water flow and temperature.
  • Eco-spray setting can deliver water savings of up to 25% without compromising the showering experience.
  • Four spray patterns including an eco-spray setting.

General information

Color

Silver

Chrome.

Finish

Chrome

Gloss

Material

Metal

Plastic

Shape

Circle

Size

165 x 700 x 105 mm

Valve, rail, head.

WarrantyDescription

Five year

Uniclass 2015

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/40 Shower units

N13/375 Shower units

Specification data - Shower fittings package Enhanced data

Form

Concealed wall mounted shower mixer valve, flexible hose, spray handset and sliding rail kit.

Materials

-

Body

Metal and plastic.

Finish and colour

Chrome gloss.

Flow rate (maximum)

28.2 L/min. at 3 bar.

Water supply temperature (maximum)

65°C.

Pressure

0.1-10 bar.

Shower head

105 mm.

Diameter Harmony shower head.

Rail height

700 mm.

Maximum.

Wall plate

165 mm.

Environmental information

Country of material origin

Italy

Country of product manufacture

Italy

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
