Pull Handle Straight Ski on Mounting Posts ASH145 - Pull Handle
Verified by manufacturer 3 months ago
Flat profile ‘Ski handle’ with a gentle curve to top.
Application
- Aluminium doors.
- Timber doors.
- Glass doors.
- Commercial doors.
Description

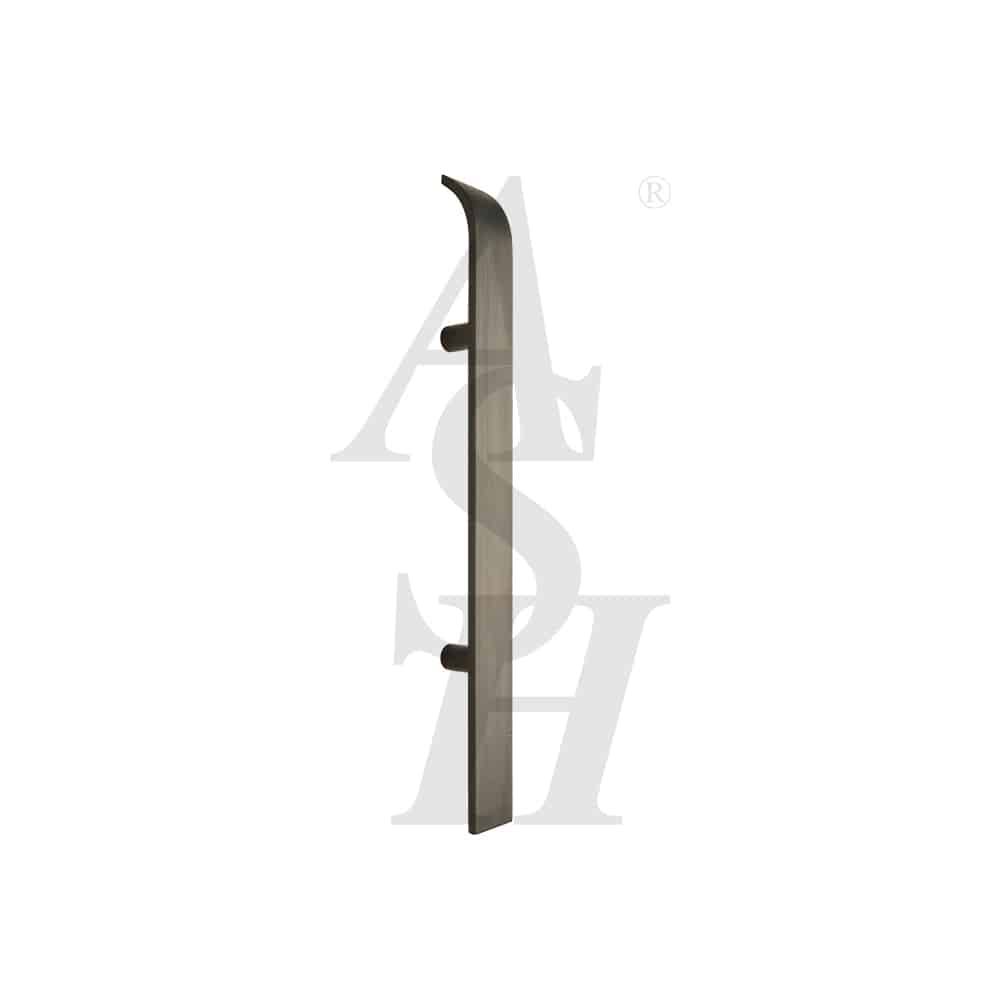

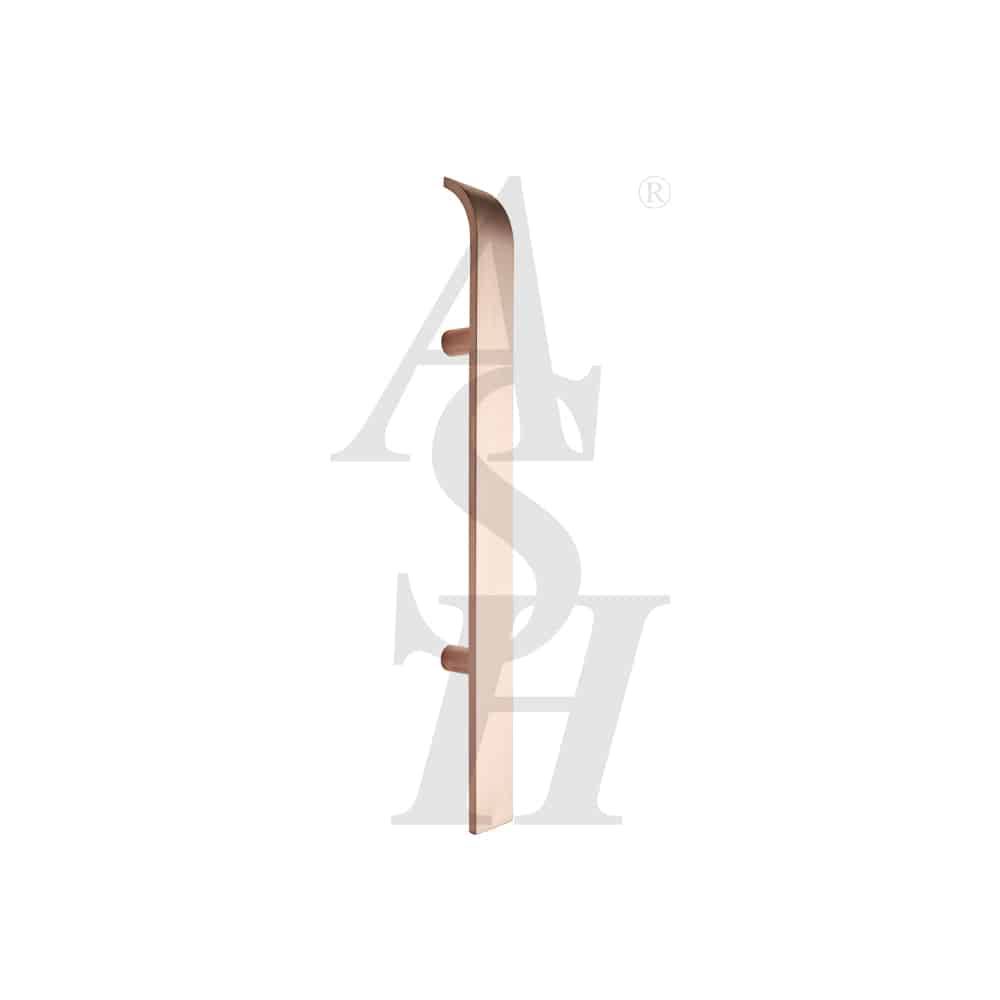

A flat profile ‘Ski handle’ with a gentle curve to top, fixed on projecting posts at the rear.
These handles are available in a number of door fixing centres and finishes and comes complete with appropriate fixings to suit the door thickness.
These door pull handles can be manufactured to any specified centres.
General information
Color | Bronze Black Gold Silver Copper |
Finish | Powder-coated Satin Polished |
Material | Metal Aluminium Stainless steel Copper Brass |
Shape | Rectangle |
Length | Bespoke |
Width | 10 mm Bespoke |
Height | 50 mm Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | P21/42 Pull handles P21/641 Pull handles |
SKU Code | ASH145 |
Specification data - Pull handles
Form | Flat profile Ski handle. |
Diameter | 50 x 10 mm. Bespoke. Manufacturer guidancePlate size. |
Distance between centres | 250-1250 mm. |
Material and finish | Satin brass (SB). Guidance for specification option: Brass. Polished brass (PB). Guidance for specification option: Brass. Peened brass (PEB). Guidance for specification option: Brass. Antique brass (AB). Guidance for specification option: Brass. Bronze patina (BP). Guidance for specification option: Brass. Weathered brass (WB). Guidance for specification option: Brass. Hammered satin brass (HSB). Guidance for specification option: Brass. Hammered polished brass (HPB). Guidance for specification option: Brass. Hammered antique brass (HAB). Guidance for specification option: Brass. Hammered bronze patina (HBP). Guidance for specification option: Brass. Hammered weathered brass (HWB). Guidance for specification option: Brass. Bronze powder coated 1 (BPC1). Guidance for specification option: Bronze powder coat. Bronze powder coated 3 (BPC3). Guidance for specification option: Bronze powder coat. Bronze powder coated 5 (BPC5). Guidance for specification option: Bronze powder coat. Bronze powder coated 7 (BPC7). Guidance for specification option: Bronze powder coat. Bronze powder coated 9 (BPC9). Guidance for specification option: Bronze powder coat. Satin copper (SCP). Guidance for specification option: Copper. Polished copper (PCP). Guidance for specification option: Copper. Peened copper (PECP). Guidance for specification option: Copper. Antique copper (ACP). Guidance for specification option: Copper. Weathered copper (WCP). Guidance for specification option: Copper. Hammered satin copper (HCP). Guidance for specification option: Copper. Hammered polished copper (HPCP). Guidance for specification option: Copper. Hammered antique copper (HACP). Guidance for specification option: Copper. Hammered weathered copper (HWCP). Guidance for specification option: Copper. Satin black PVD (PVD.SBLK). Guidance for specification option: PVD. Polished black PVD (PVD.PBLK). Guidance for specification option: PVD. Satin brass PVD (PVD.SB). Guidance for specification option: PVD. Polished brass PVD (PVD.PB). Guidance for specification option: PVD. Satin copper PVD (PVD.SC). Guidance for specification option: PVD. Polished copper PVD (PVD.PC). Guidance for specification option: PVD. Satin gold PVD (PVD.SG). Guidance for specification option: PVD. Polished gold PVD (PVD.PG). Guidance for specification option: PVD. Satin stainless (SS). Guidance for specification option: Stainless. Polished stainless (PS). Guidance for specification option: Stainless. Peened stainless (PES). Guidance for specification option: Stainless. |
Colour | As material and finish. |
Mounting | Manufacturer guidanceFixing configuration dependent on customers requirements. Consult manufacturer for assistance. |
Projection | 56 mm. Guidance for specification option: 150 mm overreach. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
ASH145 Product Data Sheet
