ASF 5006 Step Unit Handrailing
Application

Suitable for step units, ramps and other applications - consult manufacturer for further details.

Description

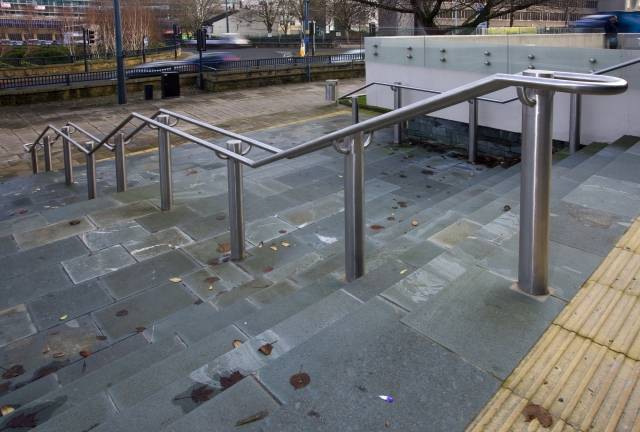

Step unit hand railing with posts which have mitred tops as standard for aesthetic effect.

All joins and fixings are welded and polished on site to provide one solid and continuous unit with no visible interfaces. Panels can be added if required to suit project requirements.

Applications:

Suitable for step units, ramps and other applications - consult manufacturer for further details.

General information

Material

Carbon steel

Stainless steel

Consult manufacturer for available grades and insert requirement.

Uniclass 2015

Ss_25_60_05_35 Handrail systemsPrimary

CAWS

L37/150 Handrail systems

Q41/240 Handrail systems

Specification data - Handrail systems

Product Reference

ASF 5006 Step Unit Handrailing

Type

-

Handrail configuration

Double handrail

Single handrail

Standard.

Posts

Standard

Reinforced

For increased ram-raid resistance.

Size

-

Height

1000 mm

Special order

Other heights available, consult manufacturer for details and insert requirements.

Post centres

Consult manufacturer and insert requirements.

Material

Carbon steel

Stainless steel

Consult manufacturer for available grades and insert requirement.

Fixing

Base plate fixing

On request.

Root fixed

Standard.

Colour/ Finish

Brush polished

Standard for stainless steel.

Galvanized and powder-coated

Standard for carbon steel.

Special order

Other finishes available, consult manufacturer for details and insert requirements.

Panels

Required

Not required

Accessories/ Other requirements

Not required

Logos/ lettering

Available on the bollard top mitres. Insert requirements.

Standard product features

Construction:

  • Handrail: Tubing of 50 mm diameter.
  • Posts: 114 mm diameter.

Product Options

Type:

– Handrail:

Warm to touch handrailing also available, consult manufacturer for details.
