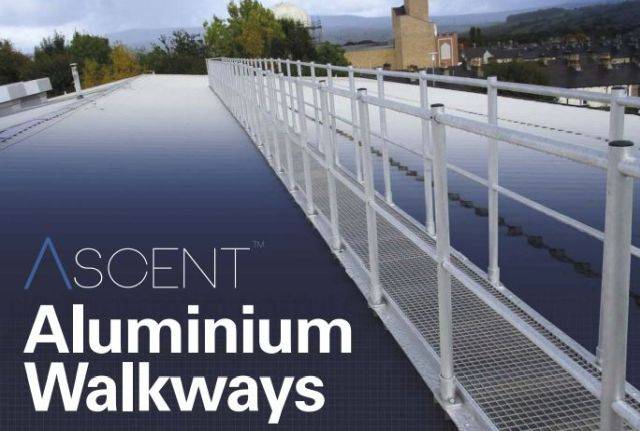

Ascent Aluminium Walkway
Verified by manufacturer 3 months ago
Standing Seam Roofing Systems
Standing Seam Roofing Systems
Aluminium anti-slip walkway system to provide safe access around roof areas. Can be installed levelled, stepped or laid to falls.
Application
Safety walkway for metal profile and standing seam roofs. Can also be used with freestanding feet to suit a flat roof.
The system can be installed either laid to falls, levelled, or stepped to suit the roof pitch.
Handrails and toe-boards can be incorporated to one side or both sides if required.
The walkway creates a level free-draining surface which both protects the roof from foot traffic and where fitted with guardrail provides collective protection to the worker.
Description
Aluminium walkway with a standardized modular system, allowing the design of compliant walkways for access on all major manufacturers and their roofing systems.
Features and benefits:
- The range of standard components can be fixed to roofs of differing slopes and profiles.
- Can be installed flat to the roof sheet, levelled, or stepped.
- Panels are profiled to provide slip resistance
- The walkway can be configured with a handrail to withstand a loading of either 0.36 kN (general duty) or 0.74 kN (heavy duty) and can be supplied with an optional toeboard if required.
- The system is unique in that it can achieve these loadings without the need for additional bracing, allowing the walkway to be placed against the area to be accessed.
- To-boards can be included on one or both sides as required.
- Self-closing gates can be included at designated access points in the system.
- CE marked and tested to BS EN 516 Class 1 Type C.
General information
Color | Silver Other Guidance for specification option: Can be powder coated. |
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 2000 mm Guidance for specification option: Individual panel length. Manufacturer guidanceThe overall length of the system can be designed to suit requirements. |
Width | 760 mm |
Height | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | L35/340 High level walkways |
Product range |
Specification data - Working platform and walkway systems
Frame | |
Section | Aluminium structural sections. |
Fixing to superstructure | Standing seam flat top clamp. |
Decking and flooring | |
Material | Serrated structural bars. |
Applied anti-slip treatment | Dual direction serration at corners and T-Junctions. |
Toe plates | Not required.Aluminium toeboard system.Guidance for specification option: A 100 mm toeboard system is available if required. |
Handrail system | Not required.One side only.To both sides. |
Assembly connectors | Self drilling screws. |
Execution | Installing walkway systems. |
Roof substrate | Standing seam. Guidance for specification option: Clamp fixed. |
Panel size | 2000 x 760 mm. Guidance for specification option: 600 mm walkable area (width). Manufacturer guidanceL x W. |
Spacing | 1600 mm. Manufacturer guidanceFixing spacings. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 8.3 kg CO₂ eq/unit Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
Case studies

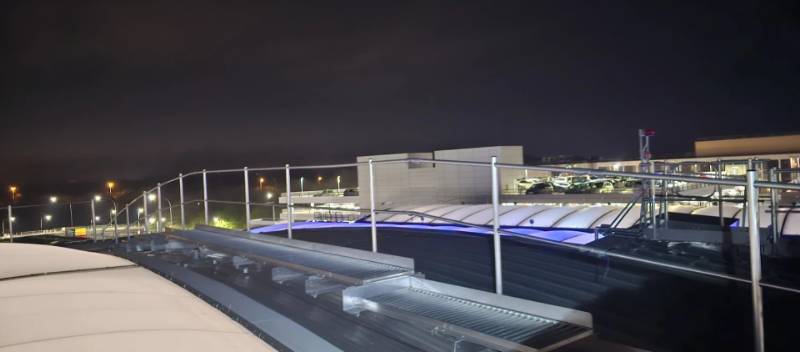

Gatwick Train Station
