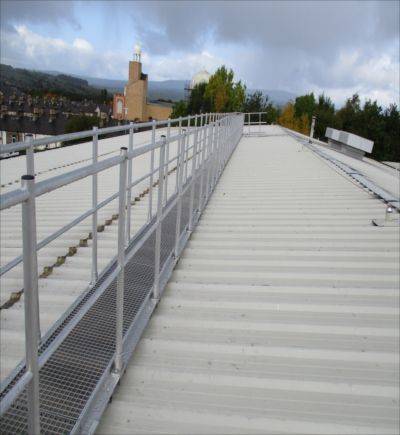

Ascent Aluminium Walkway System for Metal Profiled Roofs
Ascent Aluminium Walkway creates a level, anti-slip, free draining walking surface to provide safe access across a Metal Profile roof. With or without handrail, can be levelled or stepped
Safety walkway for metal profile roofs.
Aluminium walkway for metal profile roofing systems (both composite and built-up on site), with a standardized modular system, allowing the design of anti-slip compliant walkways for access on all major manufacturers' and their metal profile roofing systems. The range of standard components fixes to roofs of differing slope and profiles.
The walkway can be configured with a handrail to withstand a loading of either 0.36 kN (general duty) or 0.74 kN (heavy duty) and can be supplied with an optional toeboard if required. The system is distinct in that it can achieve these loadings without the need for additional bracing, allowing the walkway to be placed against the area to be accessed. CE marked and tested to BS EN 516:2006 Class 1 Type C.

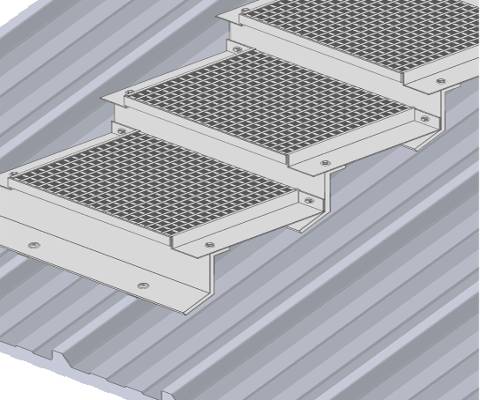

The walkway can be levelled when required to traverse across the pitch of a roof and stepped when ascending a roof slope. CE marked and tested to BS EN 516:2006 Class 1 Type C.
Applications:
Safety walkway for metal profile roofs.
Approvals:
Kalzip and BEMO approved.
Color | Mill Finish which can be powdercoated to meet clients requirements |
Features | Standardised modular system roof walkway system |
Finish | Mill Finish which can be powdercoated to meet clients requirements |
Material | Aluminium |
Shape | Corner Straight T Junction Stepped |
Size | 46 x 2000 x 760 mm |
WarrantyDescription | Standard Product Warranty |
Uniclass 2015 | |
CAWS | L35/340 High level walkways |
Product Reference | Ascent™ Aluminium Walkway System for Metal Profiled Roofs |
Design | As drawingInsert reference, consult manufacturer for information. |
Handrails | Not requiredBoth sidesOne sideInsert requirement. |
Accessories | NoneToeboardsSelf-closing gate |
Standard product features | Material: Aluminium. Panel size (l x w): 2000 x 760 mm (600 mm wide walkable area). Fixings:
|
Product Options | Design: The Ascent Walkway system can be installed on roof pitches greater than 3˚ by using levelling bracketry to provide a level, compliant walkway. Stepped units are also available, consult manufacturer's literature for information. Guardrails: Guardrails can be designed to have closed, open or fixed end details dependent on requirements, consult manufacturer's literature for more information. |
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | - | 2 | 2.1 |
 Revit | - | 2 | 2.1 |
