Arturo ESD Static Resin Floor
Verified by manufacturer 2 months ago
EPD
Certificate type
ESD epoxy resin flooring system, ideal for automotive floors.
Application
Resin floor, suitable for applications in industries such as:
- resin floor in electronics industry
- Munitions depots
- Pharmaceutical
- Production areas
- Cleanrooms
Description
An electrically conducting, sturdy, epoxy resin floor available in a variety of colours.
Features and benefits of ESD resin floor:
- Electrically conducting and explosion protection.
- Seamless and easy to clean.
- Resistant to impacts, shocks and wear.
- Impermeable to liquids.
- Chemical resistant.
- Resin floor suitable for use over underfloor heating.
- FeRFA classification: 5.
- System thickness: 1.5–2 mm.
- Usage: Medium duty.
- resin floor wear and scratch resistance: ≤ AR0.5.
- Good chemical resistance.
- Fire resistance rating: B fl-s1.
- Shore hardness (Shore D): 80–85 approximately.
- Slip resistance option available.
- Floor to ground resistance (Rgp): <10⁹ Ω.
- Flash point: <55°C.
- Solvent free and low emissions.
General information
Color | Grey Cream Blue Green Black Manufacturer guidanceMost RAL colours. |
Finish | Smooth Anti-slip |
Material | Epoxy resin |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | M12/110 Resin flooring M12/10 Resin flooring |

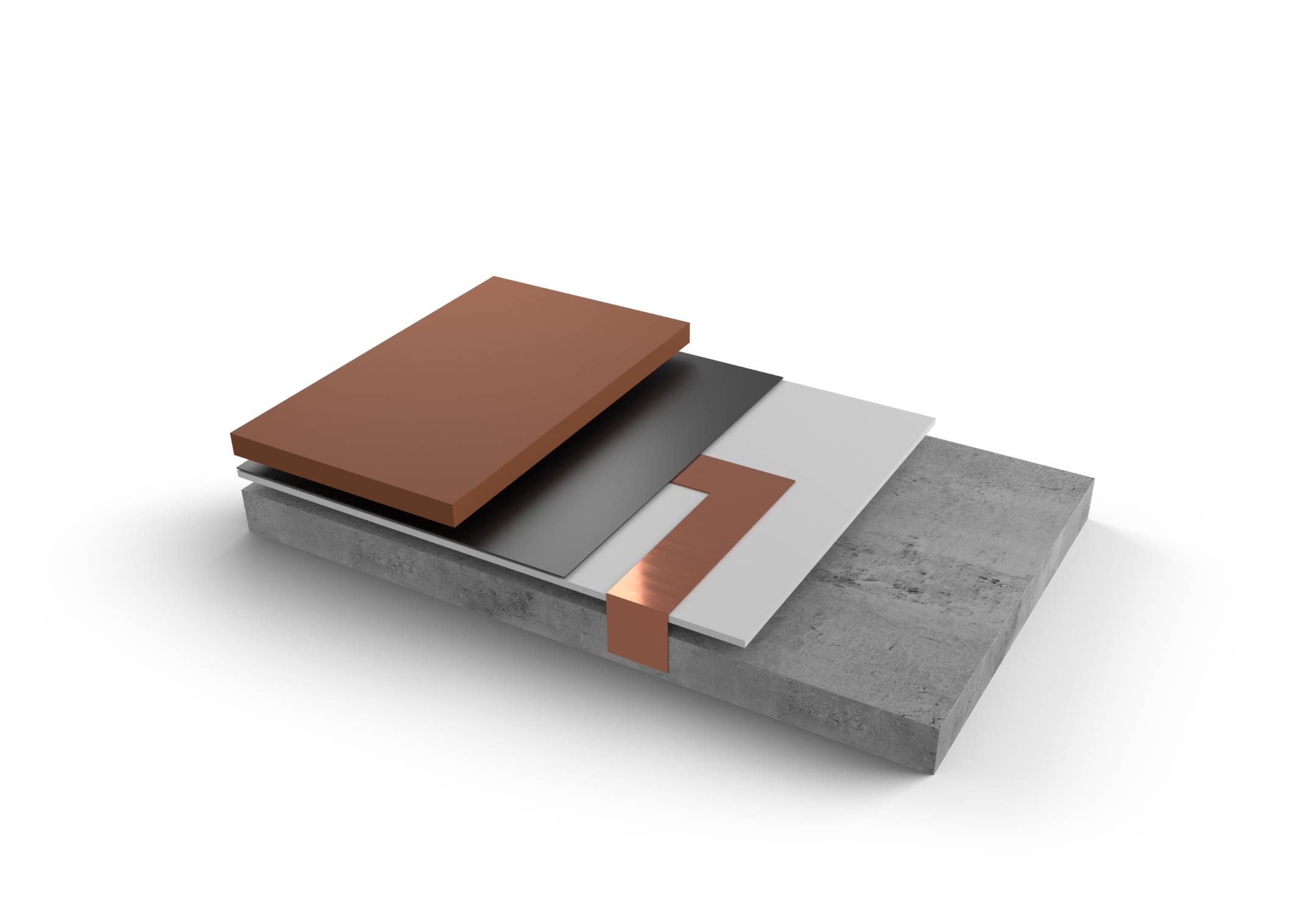

Specification data - Resin flooring systems
Classification data | |
Substrate | |
Preparation | Contaminate free. |
Levelling screed | As required. |
Primer | Arturo EP6600 NEW Primer. Arturo EP6200 Scratch Coat. Arturo EP6400 Primer. Guidance for specification option: Conductive primer. |
Resin flooring | Arturo EP2480 Self-Smoothing Floor. Arturo EP2490 Self-Smoothing Floor. |
Reinforcement | Copper Tape. |
Resin skirtings and upstands | Arturo PU1860 Mortar. |
System thickness | 1.5–2.0 mm. |
FeRFA Type | 5. |
Colour | RAL 1014 Ivory. RAL 7004 Signal grey. RAL 7035 Light grey. RAL 1024 Ochre yellow. RAL 7011 Iron grey. RAL 7036 Platinum grey. RAL 5001 Green blue. RAL 7012 Basalt grey. RAL 7038 Agate grey. RAL 5012 Light blue. RAL 7016 Anthracite grey. RAL 7044 Silk grey. RAL 5014 Pigeon blue. RAL 7023 Concrete grey. RAL 7045 Telegrey 1. RAL 6011 Reseda green. RAL 7030 Stone grey. RAL 9002 Grey white. RAL 7001 Silver grey. RAL 7032 Pebble grey. RAL 9005 Jet black. |
Shore Hardness - D | 80. 85. |
Wear resistance | ≤AR0.5. |
Abrasion resistance | 31.4 mg (CS-10/1000U/1000g). 48 mg (CS-10/1000U/1000g). |
Fire classification | B fl-s1. |
UV resistance | No. |
Typical compressive strength | 58 N/mm². 80–90 N/mm². |
Bond strength | To EN13813, B3.5. |
Resistance | Floor to ground resistance (Rgp), <10⁹ Ω. |
Cure time | Ready for foot traffic after approx. 16 or 24 hours. Full mechanical resilience after 3 days. Chemically resistant after 7 days. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Manufacturing plant location | |
Material | Epoxy resin |
Recyclability | Does not need to be removed, but can be recoated |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | Ten year |
Product certifications
Product certifications
EPD
EPD for Arturo EP6200
Literature
Literature type
Arturo ESD Static Resin Floor
Arturo Industrial Flooring Systems
Case studies
Almac Building Electrically Conducting Resin Floor
