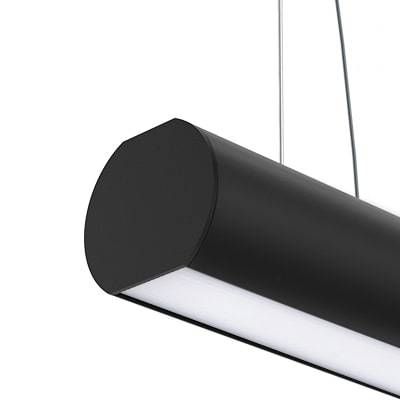

Arno Suspended Linear Lighting
Application

Used as an individual luminaire above workstations, or a continuous linear lighting system. Particularly suitable for CAT A and CAT B office fit-out and flexible co-working spaces.

Description

Suspended linear LED lighting with a tubular profile.


Features and benefits:

  • Minimalist, industrial design for a pleasing aesthetic appearance.
  • High build quality and versatile design.
  • Provides a high level of visual comfort, and is therefore suitable for stimulating working environments and schemes looking to achieve LG7 compliance.
  • A range of size and colour variations are possible.
  • Easy to install with the plug and play system.
  • Can be specified with LED Tunable White technology for the selection of a range of colour temperatures dependent on project requirements, to help aid health and well-being.
  • Can be specified with both CASAMBI and Philips EasyAir wireless sensors to increase user control.
  • Internal drivers are supplied.

Also available as surface, wall and recessed mounting (specified separately).

General information

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Tubular, linear

Size

566 mm

636 mm

706 mm

776 mm

846 mm

Show more

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Standards

IEC 60596 -2-1 and IEC 60596-2-2.

Third-party certification

Measurement Certificate 0342/2018 and LM-79-08 Photometrics.

Luminaire description

Suspended, tubular, linear.

Classification

-

Electric shock

Low Voltage (<1000V).

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Push.

Screw.

Nominal voltage

220–240 V.

Luminaire power factor

0.98 at full load.

LED luminaires

-

Performance standards

EN 13032-1.

Safety standard

IEC EN 60598-1.

Initial LED luminaire efficacy (minimum)

125 lm/W.

Wattage

Direct: 13 W/ 1484 lm up to 50 W/ 5936 lm; direct/ indirect: 22 W/ 2703 lm up to 94 W/ 11 970 lm.

Colour temperature

3000K.

4000K.

Tunable White (TW) 2700-5000K.

Insert requirements.

Colour rendering index (Ra)

80.

90.

Beam angle

30–100°.

Useful life

100 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Touch-Dimmable.

Non-dimming.

Standard.

Emergency version

-

Standard

Tridonic.

Integral sensors

Not required.

Philips EasyAir.

PIR/ Daylight.

Helvar Active Plus.

Micro Standalone Sensor.

Accessories

Not required.

Central modules.

Insert size requirements.

End modules.

Insert size requirements.

Right start, 90° horizontal corner, 600 x 600 mm.

47 W/ 66 W, insert requirements.

Start modules.

Insert size requirements.

Suspension Cable.

Insert size requirements.

Product Reference

Arno Suspended

Control gear position

Integral within luminaire.

Type

Maintained.

Duration of emergency mode (minimum)

No emergency.

0 hours.

Three hours.

Optics

Asymmetric Reflector.

Black Opal.

Microprismatic Diffuser.

Modular Optics.

Opal Diffuser.

Colour

Black.

Grey.

White.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<20.7.

Longitudinal

<22.7.

Efficiency

94%.

Frequency

50–60 Hz.

Emergency output

200 lm.

Direct/ Indirect upward light output ratio (ULOR)

47%.

Direct/ Indirect downward light output ratio (DLOR)

53%.

Output direction

Direct/ indirect.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
