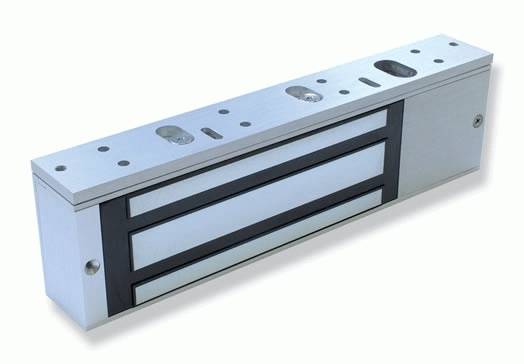

Armlock® 281
Direct pull magnets.
Description
The Adams Rite Door magnet range are direct pull magnets that are used as part of an access control system for electric locking applications.
Benefits:
- Suitable for use on aluminium, timber and steel doors.
- Compact case size and clean aesthetics.
- Magnetic holding force of at least 510 kg.
- Has a security pin feature to help prevent unauthorised removal of the magnet from the door frame fixing plate.
- Offers durability and low maintenance.
- Available as a double magnet model.
- User selectable dual voltage - 12 or 24 V DC.
- CE marked.
- Monitoring available (Hall Effect).
- Built in voltage spike suppressor.
- For out of hours security specify the Sentinel 6 Deadlock in conjunction with the direct-pull magnet.
Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Electric-locking/Door-magnets/
General information
Uniclass 2015 |
Specification data - Magnetic locks
Product Reference | 281-000Surface mounted single direct-pull magnet, 12/24 V DC, non-monitored, suitable for timber or metal door applications. 281-200Surface mounted double direct-pull magnet, 12/24 V DC, non-monitored, suitable for timber or metal door applications. 281-005Surface mounted single direct-pull magnet, 12/24 V DC, monitored, suitable for timber or metal door applications. 281-205Surface mounted double direct-pull magnet, 12/24 V DC, monitored, suitable for timber or metal door applications. |
Accessories | None281-300Spare armature plate. 281-700Adjustable ‘L’ bracket, SAA finish. 281-701Adjustable ‘L’ bracket only, with cover plate, SAA finish. 281-800‘L’ and ‘Z’ bracket kit, SAA finish. 281-801‘L’ and ‘Z’ bracket kit with cover plates, SAA finish. 281-900Rim armature housing, SAA finish. 268-600Armlock® 260/280 Series glass armature bracket. |
