Armlock® 1354

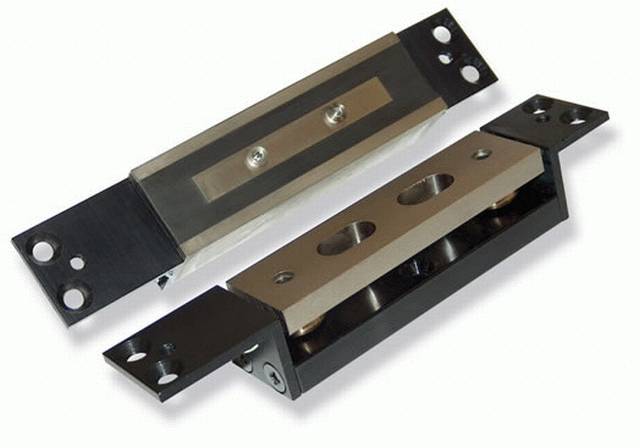

The Adams Rite Armlock® 1354 is a mini Electro-Shearmagnet to facilitate remote access where minimal intrusion into the environment is required.

The product caters for single or double action internal doors or external doors where a form of cover is situated above the doorway to prevent direct rain penetration.


  • Compact slim line size - 30 mm.
  • Nominal 1500 kg shear holding force.
  • Adjustable locking time 1–30 seconds.
  • Suitable for door gaps up to 8 mm.
  • Supplied with 3 m cable.
  • Non-handed.
  • CE Marked.
  • Mortice or surface versions.
  • Can be fitted into the head or vertical locking stile.
  • Suitable for aluminium, timber, steel and glass doors.
  • Suitable for use on aluminium, timber and steel doors.

Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Electric-locking/Door-magnets/

General information

Specification data - Magnetic shear locks and strike plates

Product Reference


Mortice mounted Mini Electro-Shearmagnet, 12/24 V DC, monitored.


Mortice mounted Mini Electro-Shearmagnet, 12/24 V DC, monitored, complete with brushed silver anodized housing with black end caps.


Surface mounted Mini-Electro-Shearmagnet, 12/24 V DC, monitored, brushed silver anodized housing with black end caps.

Colour/ Finish

Bronze anodized

Special request.

Brushed silver





Flush mount contact.


Glass door fixing bracket for surface mounted Mini-Electro-Shearmagnet (one bracket required for each housing i.e glass door to glass head application will require two brackets).
