NBS Source

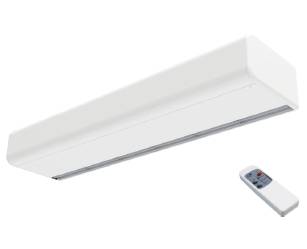

Aris Air Curtain
Compare variants

Application

Suitable for commercial doors.

Description

A horizontal air curtain.


Features and benefits:

  • Stylish, discreet and contemporary design adaptive to any interior architecture.
  • Smooth front panel can be customized with logotypes, lighting, lettering or safety and informative signals, according to the client requirements.
  • Self-supporting steel rounded casing with edgeless plastic side covers, finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours are available on request.
  • Hidden top air entrance, avoiding the inside view of the unit and the inlet grille.
  • Anodized aluminium outlet vanes, airfoil shaped.
  • Low noise twisted cross-flow fans driven by a 2-speed external rotor motor.
  • “P” type with water heated coil. “E” type with electrical shielded elements, two stages with integrated regulation. “A” type without heating, air only.
  • Includes Plug & Play control with 7 m RJ45 cable and infrared remote control.
  • Optional Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS).

General information

Shape

Rectangle

Color

Other colours available. Consult manufacturer and insert requirements.

White

RAL9016 as standard.

Finish

Epoxy coated

Material

Steel

Plastic

Aluminium

Size

1034 x 380 x 210 mm

1534 x 380 x 210 mm

2034 x 380 x 210 mm

Uniclass

Pr_70_60_36_02 Air curtainsPrimary

Specification data - Air curtains Enhanced data

Heating method

Air.

Arrangement

Cased unit.

Output

80 W.

Air volume

1500 m³/h.

Mounting height

2.8 m.

Casing finish

Epoxy-polyester painted.

Accessories

Not required.

Clever control.

Power supply

230 V.

Frequency

50Hz.

Weight

20 kg.

Noise

Noise level at 5 m.

34 dB.

Dimensions

1034 x 380 x 210 mm.

Fan

0.41 A.
