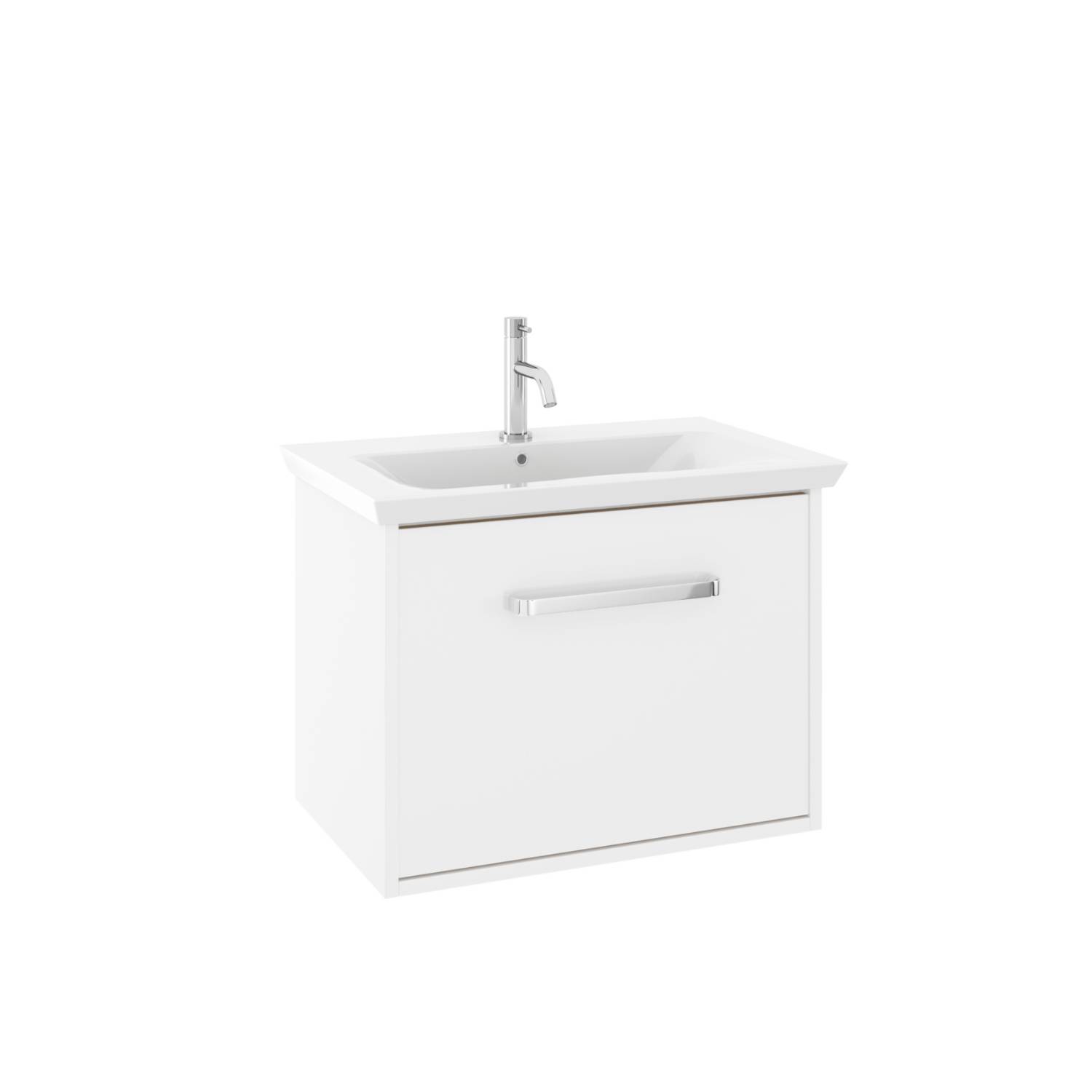

Arena 600 Unit & 650 Basin - Bathroom Furniture
Verified by manufacturer 5 months ago

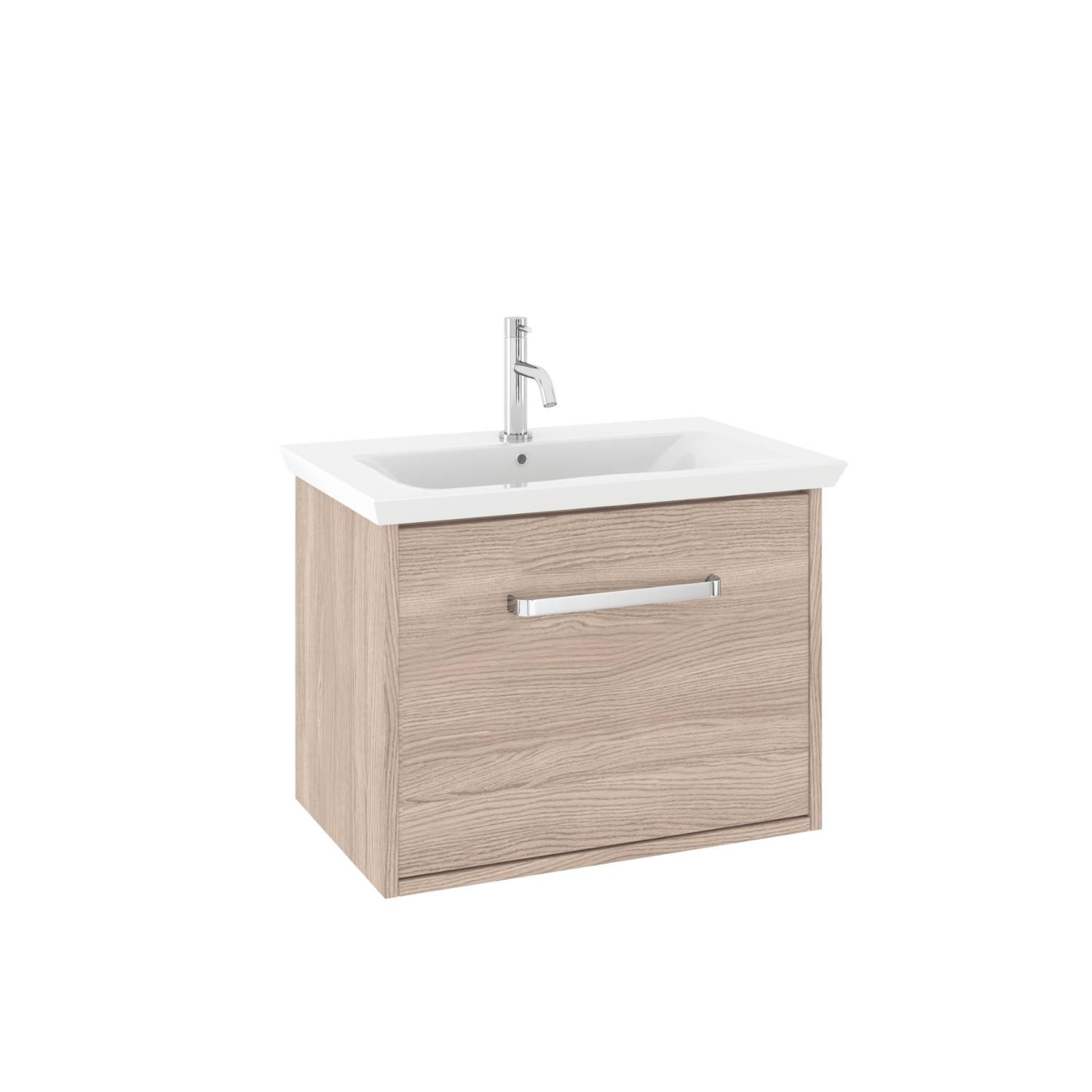

AN6000DST+ / AN0611SCW Steelwood
AN6000DST+ / AN0611SCW Steelwood
Single drawer unit with basin.
Description
Melamine faced medium density fibreboard (MDF) single drawer unit available in a range of colours and finishes. The surface of the unit is covered by a white fine fireclay ceramic basin. The unit is compatible with a range of handles (not supplied).
Features and benefits:
- Wall hangers integrated into carcass.
- Wall brackets supplied.
- Available with one or no tap holes.
- Full extension pull to open.
- Soft close.
- Lifetime guarantee on ceramic.
General information
Color | Beige Grey White |
Finish | Gloss Matt |
Material | Medium density fibreboard (MDF) Ceramic High pressure laminate (HPL) |
Shape | Rectangle |
Length | 605 mm 650 mm |
Width | 375 mm 402 mm |
Height | 35 mm 450 mm |
Warranty description | Ten year Guidance for specification option: When registered. |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins N13/341 Vanity tops with formed washbasins N10/145 Vanity and washroom furniture |
Specification data - Integral washbasins and vanity tops
Form | Wall-mounted. |
Materials | |
Basins | |
Body | Fine fireclay ceramic. |
Finish and colour | White. |
Tops | |
Body | Melamine-faced MDF. |
Finish and colour | Steelwood. |
Size | |
Basins | 650 x 375/402 x 35 mm. |
Tops | 605 x 375 x 450 mm. |
Water supply, overflow and waste holes | |
Water supply | One tap hole, centre. |
Overflow | Overflow hole. |
Integral accessories | Handle, chrome.Handle, matt black.Handle, brushed stainless steel effect.Handle, brushed brass.Ceramic basin waste.Guidance for specification option: BSW0103GW |
Sustainability data
Country of material origin | Austria |
Country of product manufacture | Poland |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
