Description

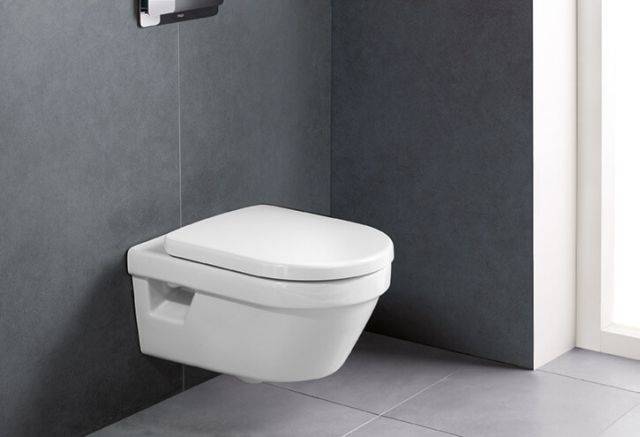

WC combi-pack manufactured in accordance with EN 997.


Features and benefits:

  • Direct flush. Flush volume: 3/ 4.5 L.
  • Horizontal outlet.
  • For wall mounting.
  • Not suitable for installation with flush valves.
  • The pack includes a washdown WC, WC-seat and cover with quick release and soft closing hinges 9M58 S1 01.

General information

Color

White

Material

Ceramic

Shape

Rectangle

Length

530 mm

Width

370 mm

Height

316 mm

Uniclass

Pr_40_20_93_97 WC suitesPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/302 WCs and flushing valves

Product range

WC

Specification data - WC suites

Standards

-

Cisterns

To BS EN 997, Class 2.

Pans

To BS EN 997, Class 2.

Form

Wall-mounted WC pan and cistern.

Materials

-

Body

Ceramic.

Finish and colour

White Alpin.

White Alpin CeramicPlus.

Sizes

-

Cistern capacity

3/ 4.5 L.

Pan height

316 mm.

Weight

22.50 kg.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

2

Revit
-

2
