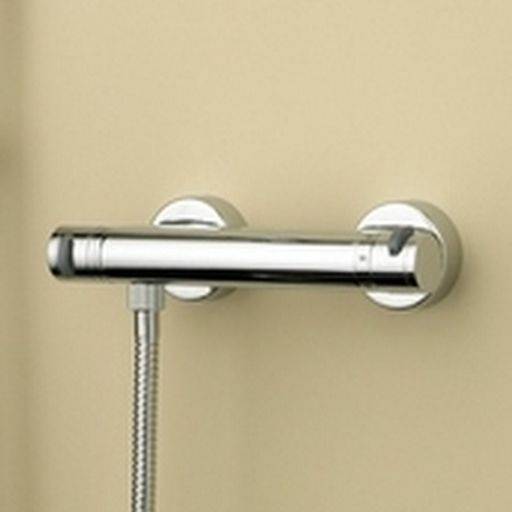

AR2 SHXVOFF C - Artisan Thermostatic Surface Mounted Bar Shower Valve and Fast-fit Connections
Artisan TMV2 bar shower valve.
Application
For all domestic bathrooms.
Description
Artisan thermostatic bar shower valve with thermostatic technology for family safety.
Features and benefits:
- TMV2 certified for enhanced user safety.
- Supplied with ultimate fast-fit connections.
- Eco feature on flow control for water saving and supplied with 7 L/min flow limiters for additional water saving.
- Pre-set maximum temperature at 38ºC which can be overridden to 46ºC.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Size | 300 x 70 x 105 mm |
WarrantyDescription | Five years Guarantee covering manufacturer faults |
Uniclass 2015 | |
CAWS | N13/375 Shower units N13/40 Shower units |
Specification data - Shower thermostatic water supply sets Enhanced data
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Standards | To BS EN 1111 / BS EN 1287. |
Form | Wall mounted thermostatic shower mixer valve. |
Materials | - |
Body | Brass. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | 14 L/ min at 3 bar.With flow regulators / Without flow regulators 21.7 L/ min at 3 bar. |
Water supply temperature (maximum) | 38°C |
Integral accessories | 2 x 7 L/min flow regulators. |
Size | 15 mm. |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | Revit 2016 | 2 | 2.0 |
 IFC | IFC2X3 | 1 | 1.3 |
| IFC | IFC2X3 | 1 | 1.3 |
