Application

For professional use. Suitable for the following:

  • Waterproofing of concrete or similar surfaces.
  • As an elastic skim coat for plaster with micro cracks.
  • To smooth over concrete surfaces subject to deformation under load.
  • As a waterproof coating for interiors and exteriors before laying ceramic or similar tiles.

Must be used in its original state, without the addition of other materials, and must be protected from rain and frost.

Consult manufacturer's literature for details on recommended substrate preparation and mixing instructions.

Description

Two-component, cement-based, elastic waterproof coating. Composed of cement, graded sand, chemical additives and synthetic polymers in emulsion.

Features and benefits:

  • Good workability, adhesion and flexibility.
  • Can be used at low temperatures.
  • Suitable for use in pools.
  • Contributes to LEED® credits.
  • Applicable by hand or trowel.
  • CE marked, and manufactured in accordance with EN 1504-2 and EN 14891-1.

Applications:

For professional use. Suitable for the following:

  • Waterproofing of concrete or similar surfaces.
  • As an elastic skim coat for plaster with micro cracks.
  • To smooth over concrete surfaces subject to deformation under load.
  • As a waterproof coating for interiors and exteriors before laying ceramic or similar tiles.

Must be used in its original state, without the addition of other materials, and must be protected from rain and frost.

Consult manufacturer's literature for details on recommended substrate preparation and mixing instructions.

Specification data
Product Reference

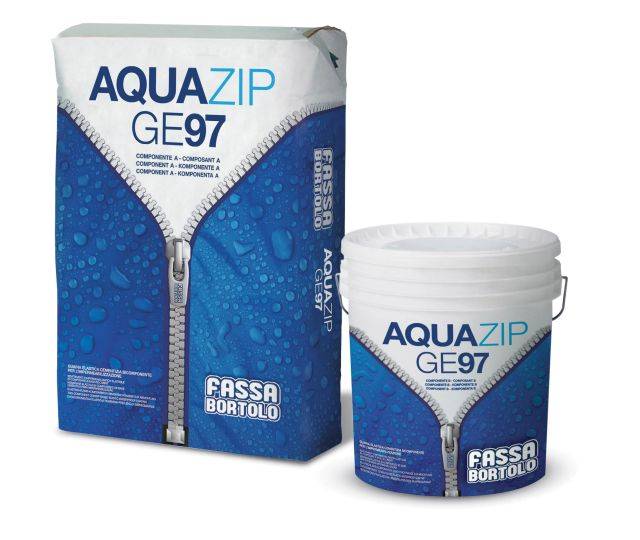

Aquazip GE 97

Standard product features

Technical characteristics:

  • Yield: 1.65 kg/m² (approximately, per mm of thickness).
  • Specific weight: 1650 kg/m³ (approximately).
  • pH value: >12.
  • Mixing ratio: 3:1 (component A: component B).
  • Application temperature: 5–35°C.
  • Waiting time: 60 minutes (approximately).
  • Waiting time (before applying tiles): 5 days at 20°C and 65% relative humidity (minimum).
  • Maximum thickness per coat: 2 mm.
  • Compliance: To EN 14891: CM-02P; to EN 1504-2: PI-MC-IR.

- Component A:

  • Form: Grey powder.
  • Specific weight: 1300 g/L.
  • Dry residue: 100%.

- Component B:

  • Form: White latex.
  • Specific weight: 1020 g/L.
  • Dry residue: 52%.

- Compliance to EN 14891:

  • Impermeability to water under pressure (1.5 bars for 7 days of positive lift): No penetration and weight increase ≤20 g.
  • Crack bridging ability (in normal conditions and at low temperatures): ≥0.75 mm.
  • Tensile adhesion strength (initial, after water immersion, after heating, after freeze-thaw cycles, immersion in chlorinated water and contact with lime water): ≥0.5 N/mm².

- Compliance to EN 1504-2:

  • Measurement of direct tensile adhesion strength: Flexible systems without traffic: ≥0.8 N/mm²; flexible systems with traffic: ≥1.5 N/mm².
  • Freeze-thaw cycles with de-icing salt immersion: Flexible systems without traffic: ≥0.8 N/mm²; flexible systems with traffic: ≥1.5 N/mm².
  • Storm cycles: Flexible systems without traffic: ≥0.8 N/mm²; flexible systems with traffic: ≥1.5 N/mm².
  • Determination of carbon dioxide permeability: 3 g/m²∙d (Sd >50 m).
  • Determination and classification of liquid-water transmission rate: W<0.1 kg/m²∙h^0.5.
  • Determination of water vapour transmission rate: 9.2 g/m²∙d (Class I Sd <5 m).

See manufacturer's literature to view further technical data.
