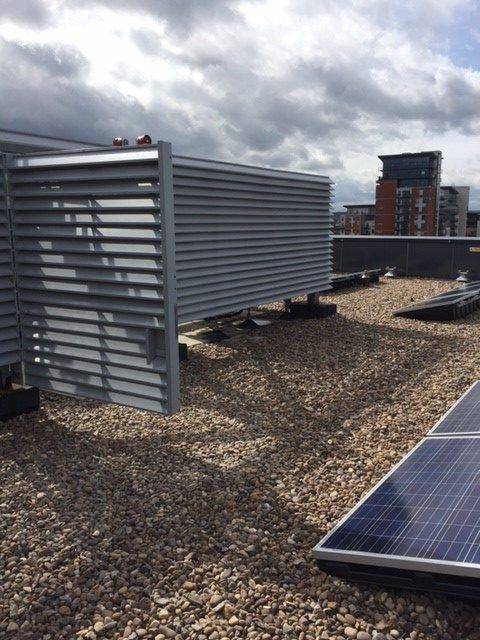

Architectural louvre system, suitable for installation into any structural or glazed opening within a building or as a free-standing structure to a roof plant area or similar.
Architectural louvre system, suitable for installation into any structural or glazed opening within a building or as a free-standing structure to a roof plant area or similar.
Features and benefits:
- AQ50:
- AQ75:
- AQ100:
- AQ3520:
- AQ50-CH2:
Shape | See 'Options' below and insert requirement. |
Material | Aluminium alloy, extruded Standard; To EN 12020 grade 6063:T6 temper, corrosion resistant. Galvanized mild steel Plastisol Stainless steel |
Uniclass 2015 | |
CAWS | L10/650 Metal louvres |
Product Reference | Aquarius™ XLINE Louvres |
Design | See 'Options' below and insert requirement. |
Type | AQ5050 mm vertical pitch. AQ7575 mm vertical pitch. AQ100100 mm vertical pitch. AQ352035 mm vertical pitch. AQ50-CH250 mm vertical pitch. |
Shape | See 'Options' below and insert requirement. |
Configuration | Double bank 'chevron'AQ50, AQ75 or AQ100 only; inverted V-profile. Single bankZ-profile. |
Material | Aluminium alloy, extrudedStandard; To EN 12020 grade 6063:T6 temper, corrosion resistant. Galvanized mild steelPlastisolStainless steel |
Colour/ Finish | Anodized, colourAluminium only, insert requirement, any standard anodized colour. Anodized, naturalAluminium only; to BS EN ISO 7599. Polyester powder coated, RAL/ BSTo BS EN 12206-1; insert requirement, any standard RAL or BS code. |
Support mullions | Not requiredStructural mullion MT01–MT04Where unsupported spans extend up to 6 m selected upon project wind loading service design requirements. VM01Span <1.25 m. VM02Span <0.35 m or fully supported by louvre frame edge detail. |
Structure | Not requiredStructural support systemSee 'Options' below and insert requirements. |
Operation | Operable, by handOperable, electricalRemovable |
Security | Not requiredBarsMesh |
Accessories | NoneBirdguard, BG001PBirdguard, BG002GBirdguard, BG-002SBlanking panels, insulated, 25 mm-thickFoil faced PIR Core with 0.9 mm-thick outer Plastisol skin, RAL 9005 black finish. Blanking panels, insulated, 50 mm-thickFoil faced PIR Core with 0.9 mm-thick outer Plastisol skin, RAL 9005 black finish. Blanking panels, insulated, 75 mm-thickFoil faced PIR Core with 0.9 mm-thick outer Plastisol skin, RAL 9005 black finish. Blanking panels, insulated, 100 mm-thickFoil faced PIR Core with 0.9 mm-thick outer Plastisol skin, RAL 9005 black finish. Blanking panels, insulated, 125 mm-thickNon-combustible, mineral wool, rigid core with 0.9 mm-thick outer Plastisol skin (RAL 9005 black finish) and 0.9 mm-thick inner Plastisol skin (white/ black finish). Blanking panels, single skin, 2 mm-thickAluminium, RAL 9005 black PPC finish to external facing. Blanking panels, single skin, 3 mm-thickAluminium, RAL 9005 black PPC finish to external facing. Cellular intumescent fire blockFire dampersInsect mesh, IM-001PInsect mesh, IM-002SPerimeter flashingsConsult manufacturer and insert requirements. Security mesh, SM-001G, 25 x 25 mm apertureSecurity mesh, SM-001G, 50 x 50 mm aperture |
Standard product features | Fixings: Louvres are not normally supplied with any fixings, fixing brackets, weather sealants or packing shims. |
Product Options | Design: Louvre panels can be made as factory assembled items up to 3000 mm wide x 1800 mm high. Wider louvres may be possible subject to design and manufacturing process review. For larger louvre panel requirements, the system can be modularized to accommodate most geometric shapes and structural opening sizes. Shape: Can be fabricated in any geometric opening shape and size from rectangular apertures to triangular/ circular or any other irregular shape; consult manufacturer for details. Configuration: - Double bank 'chevron': Improved rain defence properties over the single bank variant, recommended if the building’s weather tightness is critical. Material:
Support structure: Solinear offers a design service to provide bespoke engineered solution to latest ISO/ BS standards and codes of practise; consult manufacturer for details. Accessories: A range of mesh, blanking panels, emergency opening and locking devices are available; consult manufacturer for details. - Birdguard, BG001P:
- Birdguard, BG002G/ BG-002S:
- Blanking panels, insulated: Typical U-values achieved for care thermal conductivity (k) = 0.023 W/m²K:
- Insect mesh, IM-001P:
- Insect mesh, IM-002S:
- Security mesh, SM-001G:
|
