Application

Suitable as an alternative to hard, impermeable surfacing such as:

  • Trafficked areas.
  • Open car parks.
  • Access roads.
  • Verge reinforcement.
  • Landscaped areas.

Can also be used in conjunction with AquaCell attenuation/ infiltration structures. Consult manufacturer for information.

Description

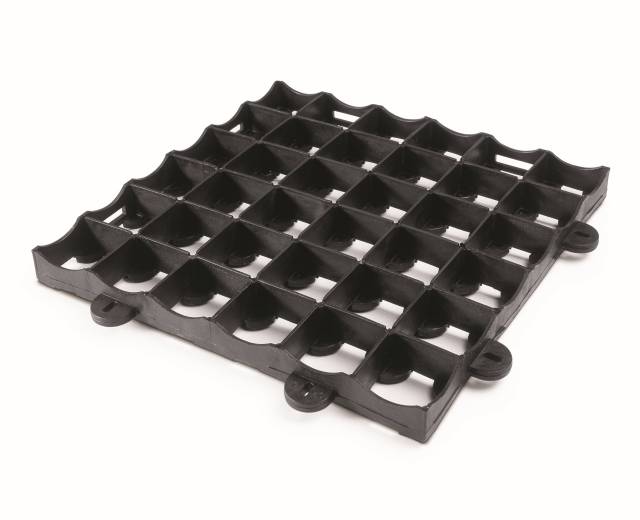

AquaGrid provides a hard surface for landscape situations when a permeable system for the infiltration of rainwater is needed.

Features and benefits:

  • Lightweight and easy to install.
  • Interlocking units for good stability.
  • Leaves up to 90% surface area for pervious infill.
  • Enables immediate infiltration of rainfall.
  • Contributes to SuDS and Part H of the Building Regulations.

Applications:

Suitable as an alternative to hard, impermeable surfacing such as:

  • Trafficked areas.
  • Open car parks.
  • Access roads.
  • Verge reinforcement.
  • Landscaped areas.

Can also be used in conjunction with AquaCell attenuation/ infiltration structures. Consult manufacturer for information.

General information
Size

500 x 500 mm paving blocks

Uniclass 2015
Plastics cellular pavers (Pr_25_93_60_61)Primary
Specification data - Plastics cellular pavers
Product Reference

0AG550

AquaGrid 50, 50 mm deep.

0AG575

AquaGrid 75, 75 mm deep.

Accessories

None

0AG502

AquaGrid pin.

0AG504

AquaGrid 50 demarcation block.

0AG505

AquaGrid 75 demarcation block.

Standard product features

Size:

500 x 500 mm paving blocks.
