AquaCall Water Leak Detection System

Name: AquaCall Water Leak Detection System
Brand: Vox Ignis Limited
SKU: b8XrtYgJZfQHBZbubxLQsU

Verified by manufacturer 6 days ago

AquaCall Four Zone System

Vox Ignis Limited

A water leak detection system that can operate as a standalone unit or as part of a network.

Jump to:

+44 (0)191 516 6030 Website

Application

Suitable for various applications depending on the size of the site.

Description

AquaCall is built on the proven AssistCall safety alarm system, which is fully monitored and battery-backed, and supports up to 64-zone configurations.

Features and benefits:

Built on the AssistCall safety alarm system.
Maintenance-free detection.
Available in one, four, or 64-zone configurations.
Fully monitored system with battery backup.
Low-profile single or double-gang control panels and interfaces.
Addressable zones for immediate graphical or text location and alarm status.
Easy to install with twist-and-go waterproof connectors.
Integration-ready for third-party systems, BMS, and water flow valve control.
Multiple control points for specific areas or entire system.
Supports up to 50 m of detection cable or one detection probe per line.

General information

Color	White
Finish	Brushed
Material	Stainless steel Polycarbonate
Shape	Rectangle Square Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	18 months

Uniclass	Ss_75_50_50_96 Water leak detection and alarm systemsPrimary

SKU Code	ViAC-4ZC-AQC

Specification data - Water leak detection and alarm systems

Classification data
System performance	Design of liquid presence, leak detection and alarm systems

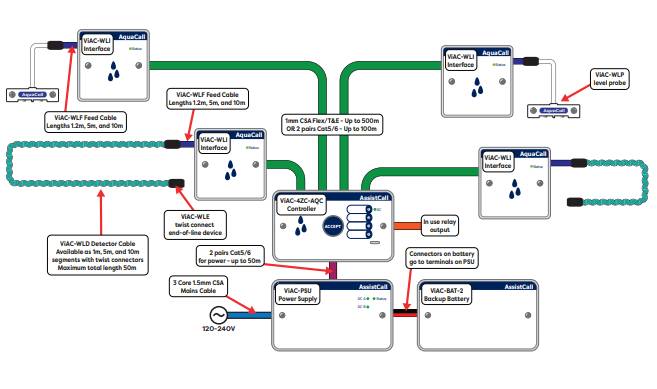

Control panel	Four zone controller. Guidance for specification option: Four zone of water leak detection (cable or probe). Visual and audible indication of alarm by zone. Alarm accepted (and silenced) using button, LED indication remains until water removed. Optional in line-visual and audible remote indication. On-board fault relay. LED indication of power, fault, short and open circuit (on interfaces).
Cable type	Detection feeder cable. Guidance for specification option: Carries the connection from AquaCall Water Leak interface to detection zones. Available in 1.2 m, 5 m or 10 m lengths.
Alarm indication	Water leak detector probe. Guidance for specification option: 2.5 V AC point detector. Triggered in water depth of 1 mm (mounting screws horizontal) and 3 mm (mounting screws vertical). Required volume to trigger: 26 mm³. Water leak detector probe with mounting bracket. Guidance for specification option: Extends minimum depth of water from 1 mm to 38 mm. Mounting bracket made from stainless steel.
Detector	Water leak detector cable. Guidance for specification option: Supplied with 5 clips with adhesive pads and screw holes. Available in 1 m, 5 m, and 10m and up to 50 m. Operating temperature range: -30°C to +70°C. Water leak detector cable with end-of-line device. Guidance for specification option: Supplied with 5 clips with adhesive pads and screw holes. Available in 1 m, 5 m, and 10m and up to 50 m. Operating temperature range: -30°C to +70°C. Waterproof end-of-line device. Fully encapsulated and twist lock on integrated connector.
Sensor interface locating module	Water leak interface. Guidance for specification option: Supports up to 64 interfaces with associated detection. Delivers maintenance free water leak detection. Manufacturer guidance Consult manufacturer's literature for details.
Power supply	Integrated with AssistCall. Guidance for specification option: One PSU will power four Four Zone Controllers.
Options	Not required. AssistCallPro relay. Battery backup and charger. ACT graphical touch screen control modules.
Usage	Apartments, smaller offices, and industrial units.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Manufacturing plant location	Sunderland Enterprise Park, Wearfield, Sunderland SR5 2TH, UK
Material	Stainless steel Polycarbonate
