AQUABION® - Galvanic Water Treatment

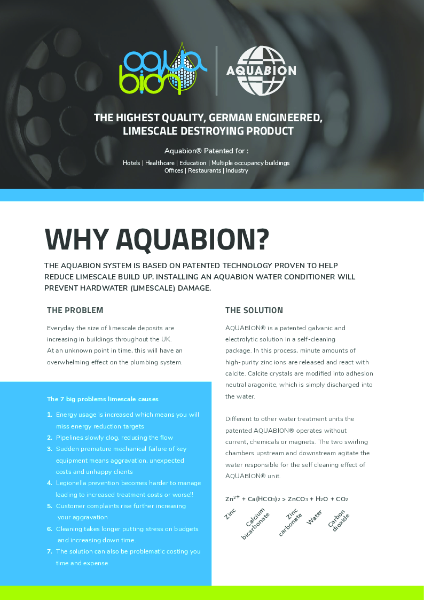

AQUABION® is a patented galvanic and electrolytic solution in a self-cleaning package. In this process, minute amounts of high-purity zinc ions are released and react with calcite. Calcite crystals are modified into adhesion-neutral aragonite, which is simply discharged into the water.

Different to other water treatment units the patented AQUABION® operates without current, chemicals or magnets. The two swirling chambers each upstream and downstream agitates the water and is responsible for the self-cleaning effect of AQUABION® units themselves.

Features and benefits:

• Specific swirling chambers using specially formed swirling elements made of stainless steel support the principle and the self-cleaning effect.
• Water as the electrolyte creates the voltage potential within the AQUABION®.

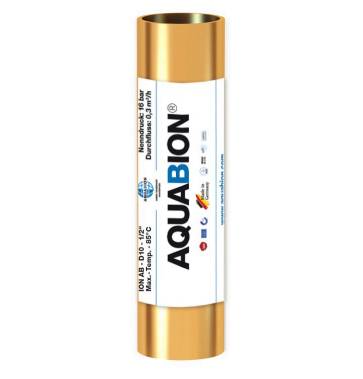

• The AQUABION® is protected by a special metal housing made of brass.
• The high-purity sacrificial zinc anodes react via zinc ions, bonding CaCO₃.
• The AQUABION® is pressure resistant up to 16 bar (PN 16), allowing almost universal application.
• Swirling elements made of stainless steel support the ionisation process within the AQUABION®.

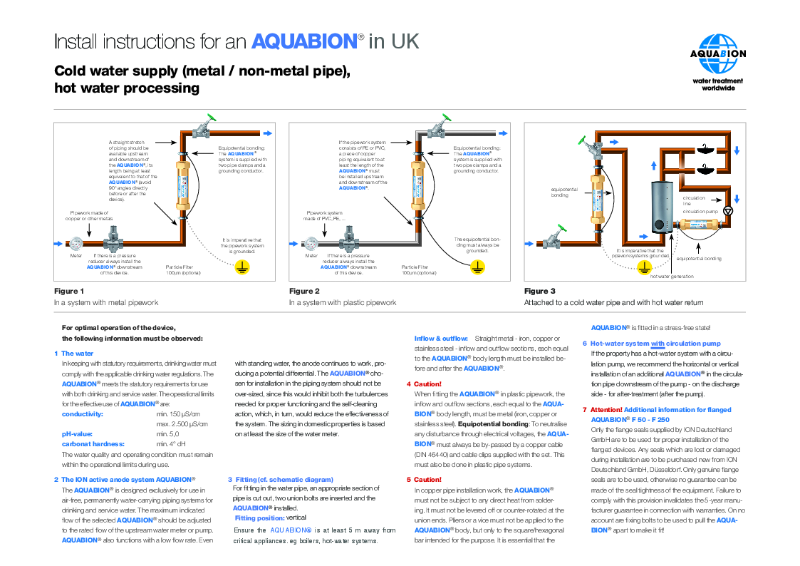

• Pivoted DIN flanges allow for easy installation.
• The AQUABION® uses recyclable materials in accordance with the German Drinking Water Ordinance.
• All components are tested by the German Association of Gas and Water (DVGW).
• Serial sizes with flanges:
  • Standard diameter: 50–250 mm.
  • Special sizes: up to a standard diameter of 1000 mm.

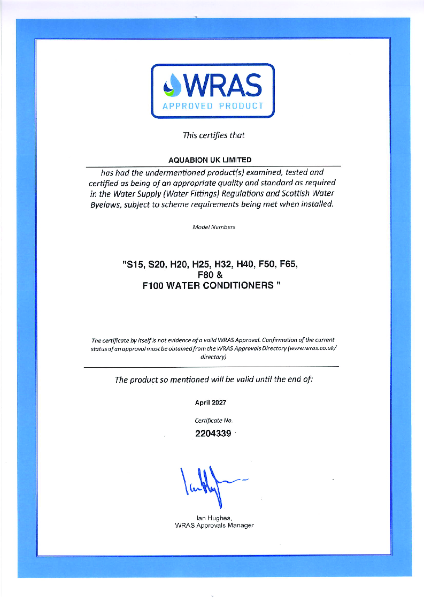

• WRAS approved.
