Aqua Plus Quattro - Shower Drain

Application

Suitable for new construction or renovation projects.

Description

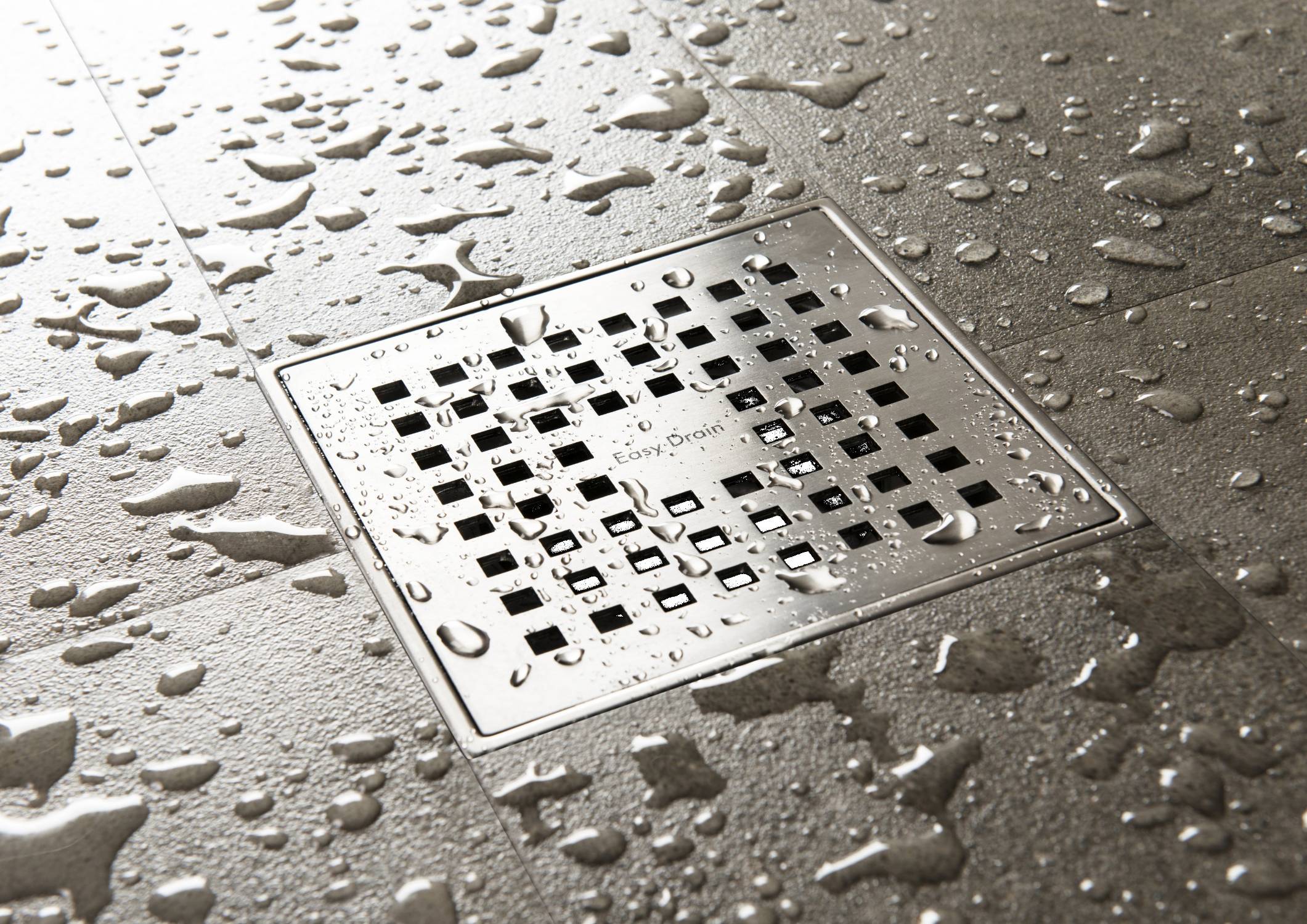

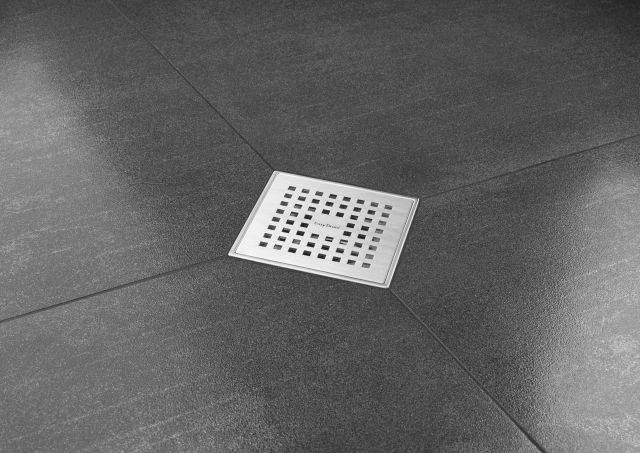

Square shower drain with revolutionary multi-technology. It is supplied as a complete set, including cement cap for protection during installation, and is suitable for every installation depth due to the height-adjustable trap body and grate.


Features and benefits:

  • Suitable for every build-in height: trap body and grate are height-adjustable.
  • Square shower drain.
  • Soundproof.
  • 150 x 150 mm models are horizontally adjustable for an optimal tile/ shower gully installation.
  • Variable and height-adjustable water seal from 25–50 mm.
  • Installation depth from 54 mm.
  • High drainage capacity.
  • Glueable acrylonitrile butadiene styrene (ABS) trap body, according to DIN-EN-ISO 2580-1:2002.
  • Easy-to-clean trap body.
  • Patented flexible flange technology: WPS ensures 100% watertight, perfect adhesion and no pressure load on the edge in comparison to a fixed flange.
  • ETAG - 022-certified.
  • EN 1253-certified.

General information

Color

Silver

Finish

Brushed

Material

Stainless steel

Acrylonitrile butadiene styrene

Shape

Square

Size

59 x 146 x 146 mm

WarrantyDescription

Ten years

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

Specification data - Floor gullies Enhanced data

Standard

To EN 1253 + ETAG - 022.

Body

-

Configuration

Siphon.

Material

Acrylonitrile butadiene styrene.

Cover or grating

-

Cover or grating type

Open grating.

Material

Stainless steel.

Finish

Brushed.

Outlet

Horizontal adjustable.

Standard.

Vertical adjustable.

Product Reference

Aqua Plus Quattro - Shower drain

Installation depth (minimum)

54–90 mm.

Drainage capacity

38 L/m – 50 mm water seal.

Water seal height

25–50 mm.

Connection

Global: 50 mm; UK: 56 mm.

Suitable substrates

Concrete/ sand cement, Lewis sheets or wooden floors.

Suitable floor finishes

Glass mosaic, thin tiles, tiles/ mosaic.

Total installation height

68–104 mm.

Environmental information

Country of material origin

Netherlands

Country of product manufacture

Germany

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
