Aqua Jewels Quattro - Shower drain
Application

New construction or renovation.

Description

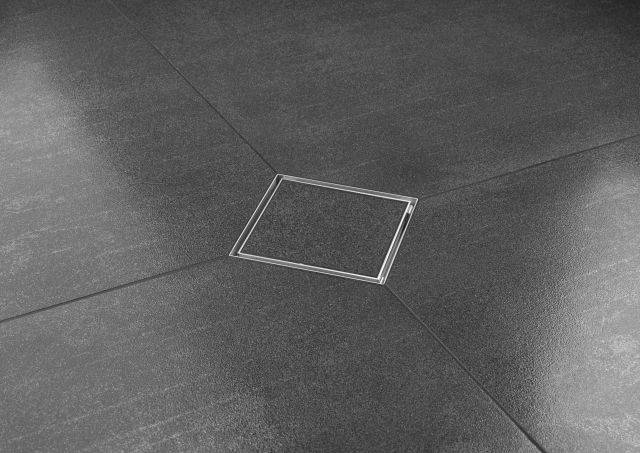

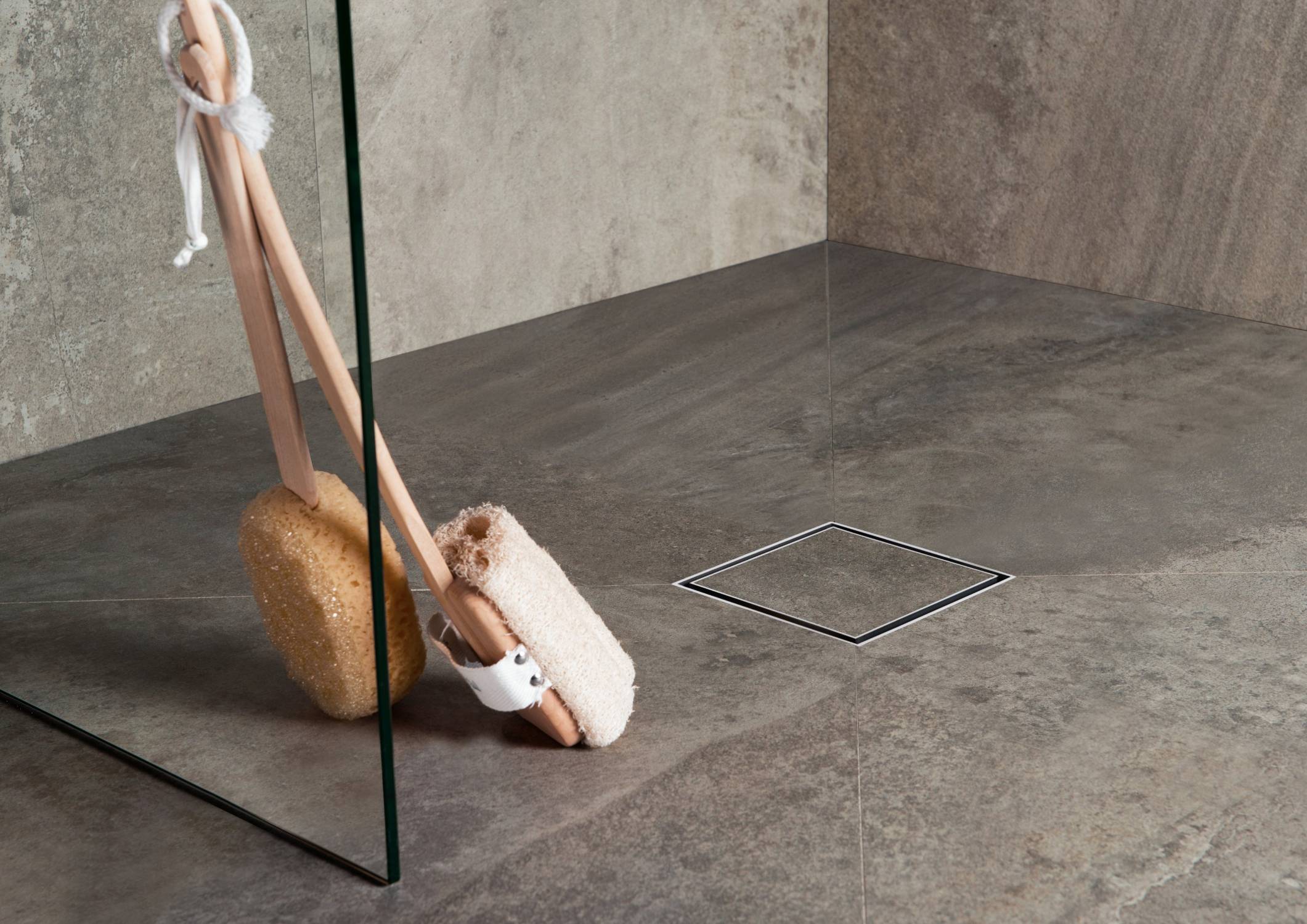

Square shower drain equipped with the Tile Adjustable Frame (TAF) system and patented Water Protection System (WPS). The height-adjustable grate support frame and pre-assembled sealing membrane ensure a seamless and watertight connection with the bathroom floor.

Features and benefits:

  • Easy-to-clean siphon.
  • Wheelchair-accessible.
  • Shortable siphon.
  • Pre-assembled sealing membrane: WPS Technology.
  • Height-adjustable siphon.
  • Pivoted and adjustable drainage siphon.
  • Multi TAF: height-adjustable drainage body.
  • ETAG - 022-certified.
  • EN 1253-certified.

Application:

New construction or renovation.

General information

Size

100 x 100 mm

150 x 150 mm

200 x 200 mm

Material

Stainless steel

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary
Specification data - Floor gullies

Product Reference

Aqua Jewels Quattro - Shower drain

Standard

To EN 1253 + ETAG - 022

Body

-

Configuration

Siphon

Material

Acrylonitrile butadiene styrene (ABS)

Cover or grating

-

Type

Solid cover

Tile

For 12 mm depth tile.

Material

Not applicable

For tile.

Glass

Stainless steel

Finish

Not applicable

For tile.

Black

For glass.

Green

For glass.

White

For glass.

Zero+ brushed

For stainless steel.

Outlet

Horizontal adjustable

Standard.

Vertical adjustable

Size

100 x 100 mm

150 x 150 mm

200 x 200 mm

Installation depth (minimum)

79 - 112 mm

Drainage capacity

35 L/m

Water seal height

25–50 mm

Connection

Global: 50 mm; UK: 56 mm

Suitable substrates

Concrete/ sand cement, Lewis sheets or wooden floors

Suitable floor finishes

Glass mosaic, thin tiles, tiles/ mosaic

Total installation height

84-128 mm

Standard product features

Features:

Equipped with Tile Adjustable Frame (TAF).

Finish:

Brushed frame.

Material:

Stainless steel grade 1.4301 (304) frame.

Shape:

Square.

Warranty description:

Ten years.

Country of origin:

Netherlands.

Country of manufacture:

Germany.
