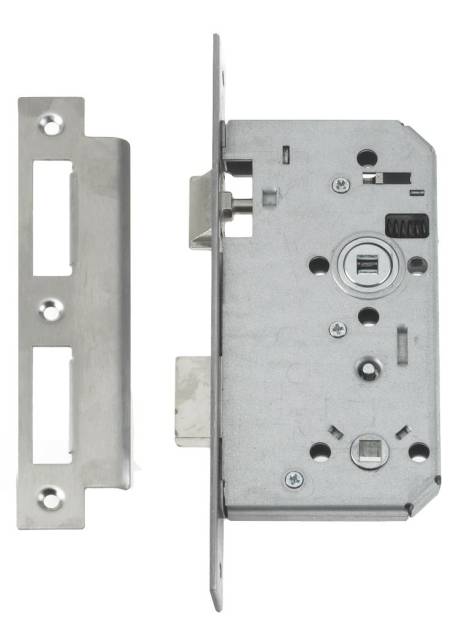

Aptus² Bathroom Lock 2B27

Application

  • For timber doors hinged on the left or right.
  • Also suitable for steel and composite doors – special fixings required.

Description

Application:

  • For timber doors hinged on the left or right.
  • Also suitable for steel and composite doors – special fixings required.

Operation:

  • European style casing with 72 mm centres which accommodates most euro profile cylinders.
  • Deadbolt locked or unlocked by a separate privacy turn from the inside.
  • Single throw 14.5 mm deadbolt.
  • Latch bolt withdrawn by the lever handle from either side.
  • Easily reversible latch bolt.
  • Pierced to accept bolt through furniture and privacy turn/release.
  • Suitable for unsprung lever furniture.

Features:

  • Profiled latch bolt for smooth and positive engagement during operation.
  • Single piece forend for quick and easy installation.
  • Easily reversible stainless steel latch bolt.
  • Supplied with an adjustable formed strike.
  • 3 part follower provides spindle grip feature to reduce rattle and provide positive operation.
  • Positive 1° follower angle to help maintain the appearance of the door furniture over time by reducing lever droop.

5 year guarantee.

Additional information for this product is available from:

http://www.uniononline.co.uk/en/site/Union-Online/Products/Mechanical-Locking/Mortice-Locks/Aptus2/

General information

Features

Profiled latch bolt for smooth and positive engagement during operation

Single piece forend for quick and easy installation

Easily reversible stainless steel latch bolt

Supplied with an adjustable formed strike

3 part follower provides spindle grip feature to reduce rattle and provide positive operation

Show more

Uniclass 2015

Pr_30_36_08_24 Door latches

Primary

CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches

Product Reference

Aptus² Bathroom Lock L2B27

Type

J2B27S-SS60

Mortice bathroom lock, square.

J2B27R-SS60

Mortice bathroom lock, radius.

Standard product features

General:

  • Case size: 88 mm.
  • Backset: 60 mm.
  • Case: Galvanized steel.
  • Forend: Stainless steel.
  • Striking plate: Stainless steel.
  • Latch bolt: Zinc.
  • Follower: Zinc, 8 mm.

Colour/ Finish:

Stainless steel.

Standards:

  • Tested to BS EN 12209:2003.
  • BS EN 1634-1 assessed for use on 60 minutes timber fire doors.
  • EC Certificate number: 0960 - CPD - 427.003.
  • Assists in fulfilling duties required under the Equality Act. Satisfies recommendations of BS 8300 and Building Regulations (E&W) Approved Document M.
