Natural smoke extract and day to day ventilator with weathered ventilation facility.
Apollo ATI is a natural flap ventilator that can provide both full extraction through its top flaps and weathered ventilation via longitudinal side flaps. It is a dual purpose ventilator, providing both day to day and smoke control ventilation and is generally installed onto roofs, providing high level extract to most kinds of industrial buildings. Polycarbonate versions allow the entry of natural daylight. It is tested to and in compliance with EN 12101-2 and is CE marked. It is made from tough, corrosion resistant aluminium alloy and is manufactured under the ISO 9001 quality and ISO 14001 environmental management standards.
Easy to install
Energy efficient - highly insulated and air tight, meeting or exceeding today’s energy savings regulations
Allows weathered ventilation
A wide range of applications
Tested and certified as fall-through-proof in 300J and 1200J tests by an external test house
L10/490 Roof ventilators

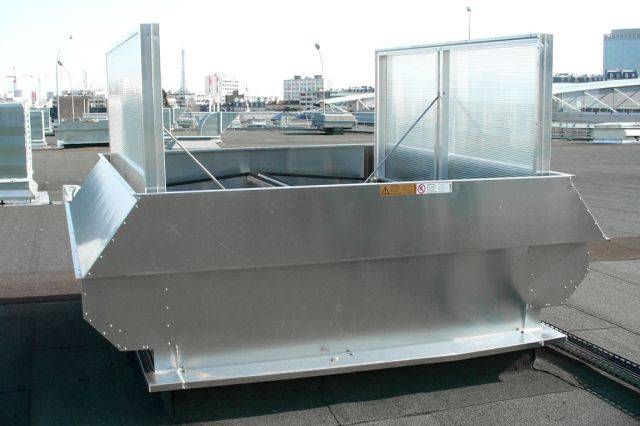

Apollo ATI natural ventilator for weathered ventilation
1000–1900 mm in 1 mm increments.
1000–3000 mm in 1 mm increments.
Aluminium base profile to suit
Polyester powder coating, RAL
Insert colour requirement.
16 mm clear polycarbonate, 7 skins, 6 chambers
16 mm opaque polycarbonate, 7 skins, 6 chambers
16 mm opaque polycarbonate, external and internal sheet, single chamber
Double skin Insulated aluminium infill panel
24 V DC
Standard product features
Manufactured from corrosion resistant aluminium alloy grade 3005 in accordance with EN 573-3, with stainless steel fixings.
Used to reduce air leakage when closed.
Side flaps and aerodynamic deflectors are set within a wind baffle to provide weathered ventilation.
Suitable for fixing either onto a curb, into glazing, into curtain walling, or into roof sheeting.
