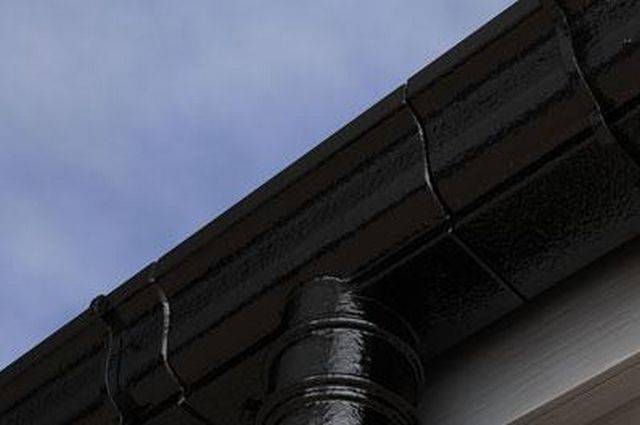

Apex Heritage 127 mm Cast Iron Moulded gutter
Description

Alumasc Apex Heritage Cast Iron offers a range of four traditional gutter profiles from stock, with associated fittings and accessories. The Apex Heritage range also includes round and square pipework, to provide a complete rainwater system solution for traditional contracts. In addition to the stock range Apex Heritage Cast Iron can offer virtually any profile or design manufactured to order, including new designs or products made to match or replace existing installations. The range is the ideal solution to building or restoration in architecturally sensitive period settings.

Apex Heritage Moulded socketed gutters are available in three sizes. Gutters have a sharply featured decorative profile.

General information
Finish

Red oxide primer

Material

Sand cast iron

Uniclass 2015
Pr_65_50_35_11 Cast iron eaves guttersPrimary
CAWS

R10/315 Cast iron gutters

Specification data - Cast iron eaves gutters
Product Reference

Apex Heritage MG54 127 mm Cast Iron Moulded gutter

Fittings -
Union clips

MG54/UC

As drawing ___

Contractor's choice

Stop ends

MG54/SE/LI left hand internal stop end

MG54/SE/RE right hand external stop end

MG54/SE/RI right hand internal stop end

As drawing ___

Contractor's choice

Running outlets

MG54/RO/25 single spigot running outlet, 63 mm diameter

MG54/RO/30 single spigot running outlet, 76.5 mm diameter

MG54/RO/33 single spigot running outlet, 72 mm square

MG54/RO/40 single spigot running outlet, 102 mm diameter

MG54/RO/43 single spigot running outlet, 102 x 75 mm rectangular

As drawing ___

Contractor's choice

Angles

MG54/EA/9 single spigot 90° external angle

MG54/EA/12 single spigot 120° external angle

MG54/EA/13 single spigot 135° external angle

MG54/IA/9 single spigot 90° internal angle

MG54/IA/12 single spigot 120° internal angle

MG54/IA/13 single spigot 135° internal angle

As drawing ___

Contractor's choice

Brackets/ Rafter arms

Drive in brackets

Fascia brackets

Rise and fall brackets

Side fix rafter arms

Top fix rafter arms

As drawing ___

Contractor's choice

Standard product features

Material:

Sand cast iron.

Dimensions:

  • Length: 1830 mm.
  • Width: 127 mm.
  • Depth: 102 mm.

Finish:

Red oxide primer.

Product Options

Brackets/ Rafter arms:

A wide range of brackets/ rafter arms is available. Consult manufacturer for product prefixes relating to specific gutter sizes/ types.
