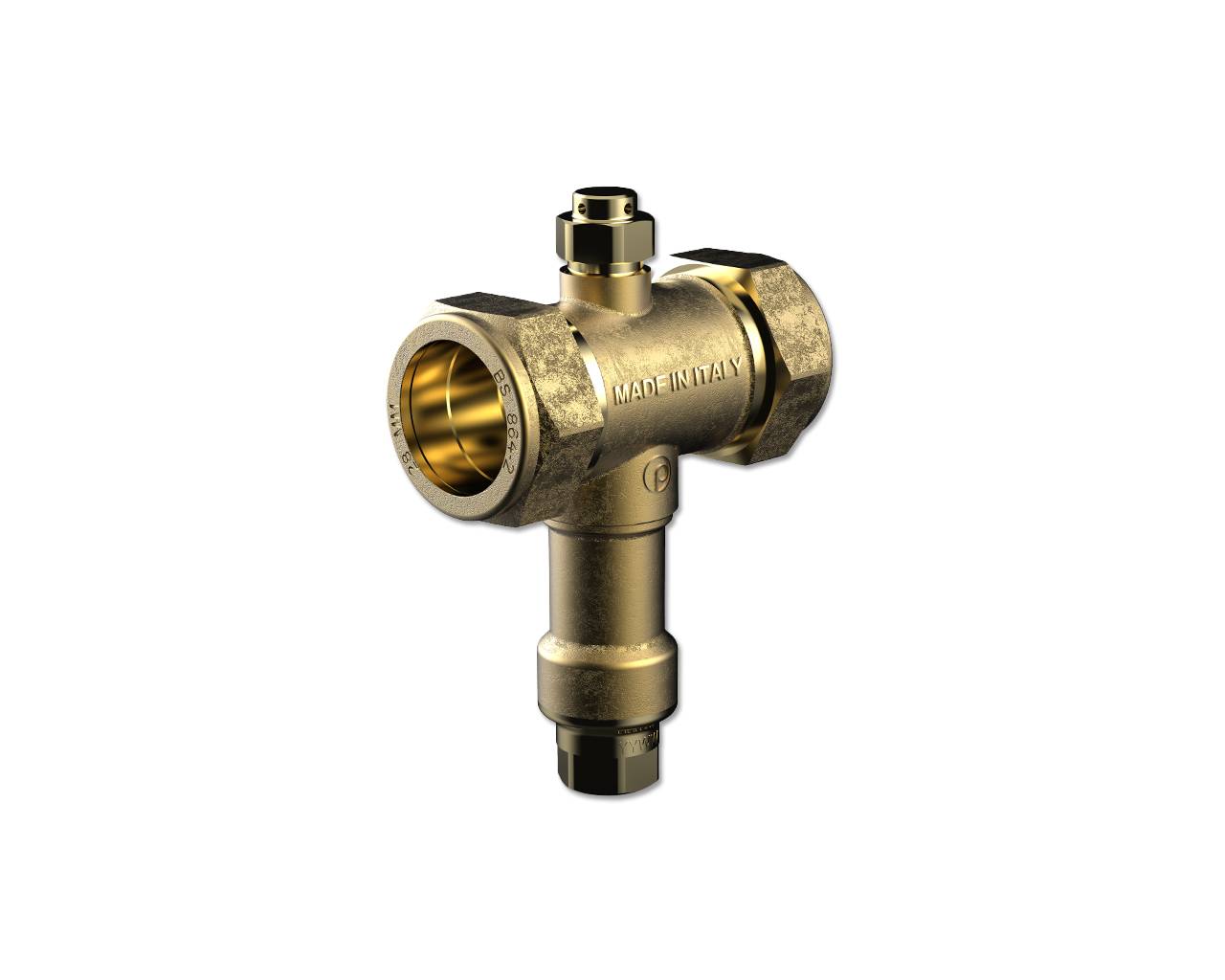

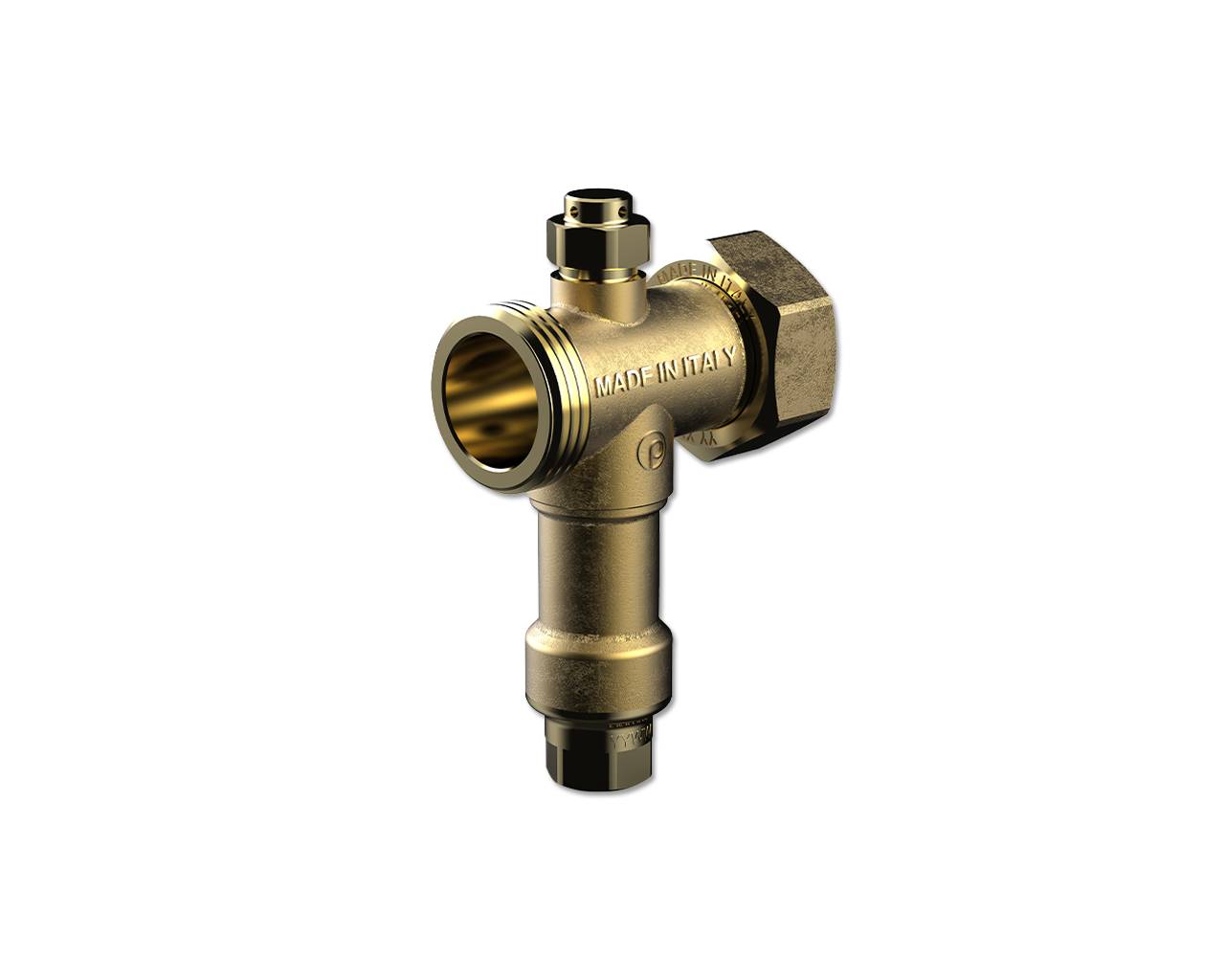

Antifreeze Valve
Verified by manufacturer 2 days ago
AG100/2 - 1"
AG100/2 - 1"
Antifreeze valve that is designed to be installed in the supply and return pipework.
Application
Antifreeze valve that is designed to be installed in the supply and return pipework from a heat pump and on the external pipework.
Description
Antifreeze valve designed to ensure safe and efficient operation of heat pumps in harsh climatic conditions. The combination of this situation with the failure of the heat pump (damage/ fault/ lack of electrical power) can lead to situations in which the temperature of the fuid approaches freezing point, thus exposing the system to possible damage. The valve effectively prevents freezing, protecting the system. When the fluid temperature approaches 3°C, the valve discharges water to prevent ice formation and system damage.
The antifreeze valve operates without electrical power, making it particularly suitable for installations at risk of power outages during the winter season.
Features and benefits:
- Extended fluid temperature range: 0°C to 90°C.
- Electricity-free operation: fully mechanical system.
- Ensures system safety even during extended heat pump inactivity.
- Durable construction: brass body (CW617N), stainless steel spring (AISI302), EPDM-X seals.
- Opening temperature: 3°C (± 0.5°C).
- Closing temperature: 4°C (±0.5°C).
- Protects circuits from frost.
General information
Color | Gold |
Finish | Copper |
Material | Brass Steel EPDM Copper |
Shape | Other |
Length | 60 mm 63 mm 70 mm 72 mm 82 mm |
Width | 33 mm 42 mm 44 mm 52 mm |
Height | 110 mm 116 mm |
Uniclass | |
CAWS | S90/640 Draining taps |
SKU Code | AG100/2, AG100/5, AG100CM |
Specification data - Draining taps
Size | 1 inch (male x male). |
Arrangement | Type 1. |
Material | Copper alloy. Guidance for specification option:
|
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Height | 110 mm. |
Pressure | 10 bar. Manufacturer guidanceMaximum working pressure. |
Fluid temperature range | 0°C to 90°C. |
Operating temperature | -30°C to +65°C. Manufacturer guidance
|
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Italy |
Material | Brass Steel EPDM Copper |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
