Anti-Vandal WC Flushing

Description

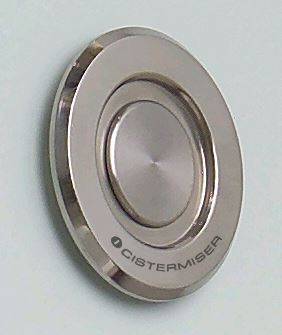

A stainless steel encased piezo touch button is fixed flush with the mounting surface. When touched, the button causes an electronically operated valve to open and allow water to flush the WC cistern. Touch buttons are made from robust AISI 316L (1.4404) stainless steel. Each unit can control up to six valves and each piezo touch button controls one outlet.

Features:

  • Programmable (adjustable) flow duration.
  • Anti-ligature touch button.
  • Low voltage operation from power supply with battery back-up.
  • Robust piezo touch button.
  • Cistern valve or direct mains supply valve options.
  • 12-hour hygiene rinse option.
  • Anti-flood feature.
  • Master control remote disable function.
  • BREEAM Wat 01 compatible product.

General information

Features

Programmable (adjustable) flow duration

Anti-ligature touch button

Low voltage operation from power supply with battery back-up

Robust piezo touch button

Cistern valve or direct mains supply valve options

Show more

Uniclass 2015

Pr_75_50_46_31 Flush control devicesPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

N13/302 WCs and flushing valves

Specification data - Flush control devices

Product Reference

Anti-Vandal WC Flushing

Touch button tail length

Consult manufacturer and insert requirements. Tail lengths can accommodate panel/ wall thicknesses from 17–330 mm.

Product Options

Flush valves:

The Anti-Vandal WC system can be installed with either a cistern-mounted valve or a direct supply valve. The cistern valve option utilizes the durable Easyflush valve that offers a flush (outlet) and delayed action fill (inlet) valves combined in one unit. The direct flush option utilizes the Easyflush Direct valve that removes the need for a cistern and offers the advantage of an immediate re-flush.
