Touch-controlled water delivery to washroom urinals.

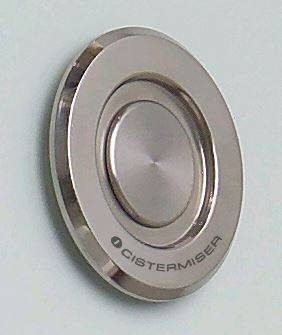

A stainless steel encased piezo touch button is fixed flush with the mounting surface. When touched, the button causes an electronically operated valve to open and allow water to flush urinals. Touch buttons are made from robust AISI 316L (1.4404) stainless steel. Each unit can control up to six valves and each piezo touch button controls one outlet.
Programmable (adjustable) flow duration
Anti-ligature touch button
Low voltage operation from power supply with battery back-up
Robust piezo touch button
12-hour hygiene rinse option
Master control remote disable function
BREEAM Wat 01 compatible product
N13/15 Urinals and cisterns
N13/315 Urinals and auto-flushing cisterns
N13/316 Urinals and flushing valves
Anti-Vandal Urinal Flush Control
Touch button tail length
Consult manufacturer and insert requirements. Tail lengths can accommodate panel/ wall thicknesses from 17–330 mm.
