Anti Terrorist Truck Planter
Anti Terrorist Truck Planter.
The Kent Anti Terrorist Planter is supported by the PAS 68 removable bollard core which is set towards the front side of the planter that is exposed to the possible threat. This core gives the planter the extra strength to withstand a potential impact of a car or truck. The Kent Anti Terrorist Planter is supported by a 2400 mm x 900 mm foundation which is fitted with a rebar cage and concrete fill grade C50 The Pas 68 removable bollards are then inserted into the fittings and the planter is then placed on top. This design makes it capable to withstand a 7500 kg Truck at 48 km/h (30 mph).

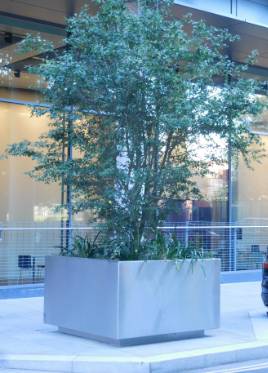

The Kent Anti Terrorism Planter is currently installed in London.
Features and benefits:
- Stops a 7500 kg Truck at 48 km/h (30mph).
- Fully complies with BSI PAS68:2007.
- 2400 mm x 900 mm Foundation.
- Iroko Timber Perimeter Capping.
| Color | Bright satin |
| Features | Able to stop a 7500 kg truck at 30 mph, iroko timber perimeter capping, easily cleaned |
| Finish | Electropolished, passivated, satin finished 320 grit polished, bright satin, bright peened, shot peened, powdercoated |
| Material | Stainless steel, galvanised steel |
| Shape | Square |
| Size | 1800 x 1150 x 2170 x 2170 mm |
| Uniclass 2015 |
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | - | 1 | 2.0 |
 Revit | Revit 2017 | 1 | 2.0 |
