ANS Living Wall System – Ply Backing Type
Application

Used for interior applications where there is an existing substructure.

Description

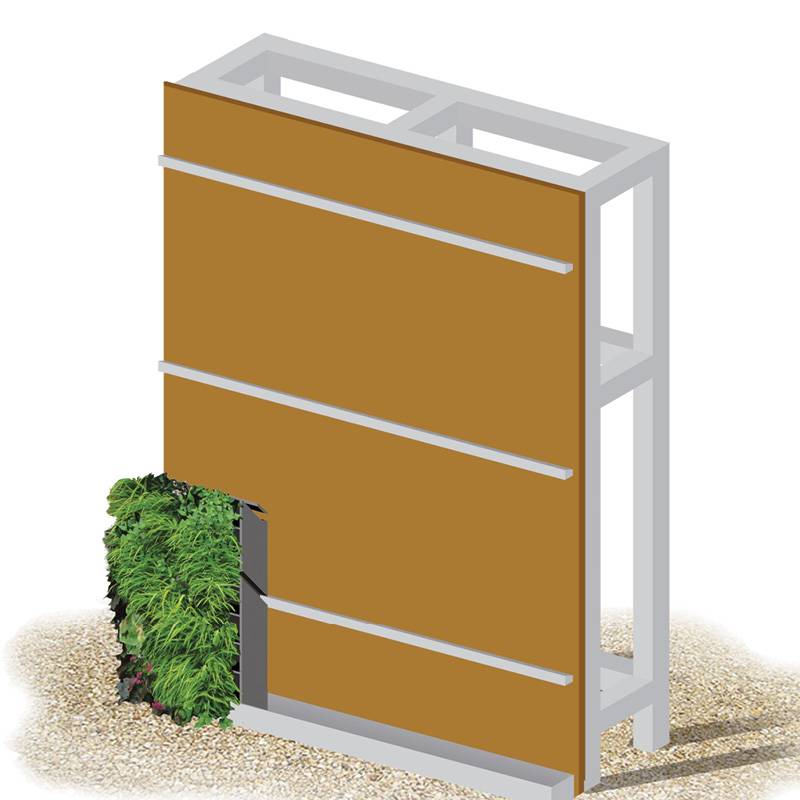

A plywood build-up system for fixing to an existing substructure.

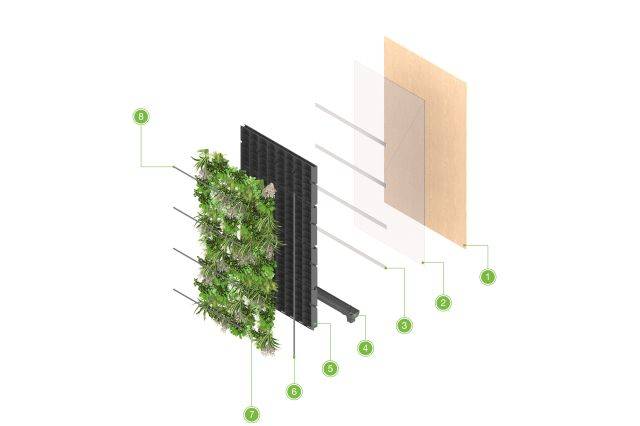

Features and benefits:

  • Indicative brick or concrete surface.
  • Waterproof membrane.
  • ANS living wall module 500 x 250 x 100 mm.
  • 48 x 12 mm ANS fixing rail.
  • Osma squareline gutter or client specified.
  • UV resistant.
  • Planting.
  • 16 mm inline emitter pressure regulated irrigation pipe.

General information

Color

Dependant on planting selection

Black

Finish

Planted surface

Smooth

Material

PVC

PVC-U

Shape

Linear

Size

107 x 51 mm

WarrantyDescription

Ten years

Uniclass 2015

Ss_45_40_95_54 Modular unit vertical planting systemsPrimary

CAWS

Q31/292 Prefabricated plant containers

Specification data - Modular unit vertical planting systems Enhanced data

Product Reference

ANS Living Wall Plywood System

Environmental information

Recyclability

Living wall module is recyclable, can reuse soil and plants where appropriate.

-

Recycled content

100

Living wall module contains 100% recycled plastic.

Digital objects
Platform Compatible Version Certified to
IFC

IFC2X3

1

1.3
IFC

IFC2X3

1

1.3
Revit

Revit 2015

1

1.3
Download now from NBS National BIM Library
