This product is no longer available —
ANS Living Wall Plywood System
Plywood modular unit vertical planting system.
Mostly used for interior applications where there is an existing substructure.
A plywood build-up system primarily used for interior applications where there is an existing substructure.

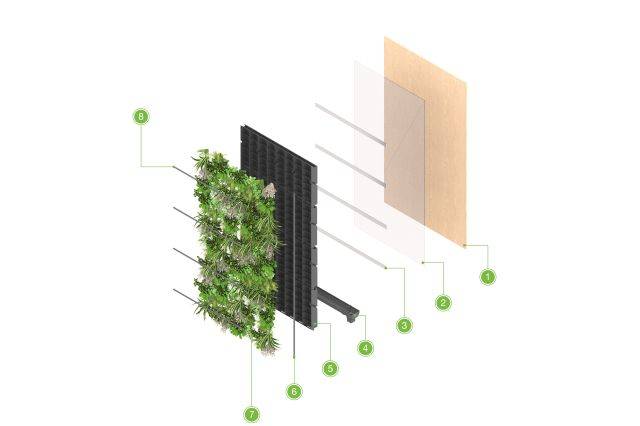

Order of build-up:
- Indicative brick or concrete surface.
- Waterproof membrane.
- 48 x 12 mm ANS fixing rail.
- Osma squareline gutter or client specified.
- ANS living wall module 500 x 250 x 100 mm.
- 16 mm vertical irrigation pipe.
- Planting.
- 16 mm inline emitter pressure regulated irrigation pipe.
Application:
Mostly used for interior applications where there is an existing substructure.
| Features | Aesthetic, improved air quality, increased biodiversity, branding opportunity, positive effect on staff morale, increased sound insulation, outdoor structural protection, temperature regulation, UV resistant |
| Finish | Planted surface, smooth |
| Material | Unplasticized polyvinyl chloride (PVC-U) |
| Shape | Linear modules |
| Size | 107 x 51 mm modules |
| WarrantyDescription | 10-year guarantee on the living wall module, 12 months guarantee for everything else |
| Uniclass 2015 | |
| CAWS | Q31/292 Prefabricated plant containers |
| Product Reference | ANS Living Wall Plywood System |
| Standard product features | Colour: Black. Features: Aesthetic, improved air quality, increased biodiversity, branding opportunity, positive effect on staff morale, increased sound insulation, outdoor structural protection, temperature regulation, UV resistant. Finish: Planted surface, smooth. Material: Unplasticized polyvinyl chloride (PVC-U). Shape: Linear modules. Size: 107 x 51 mm modules. Warranty description: 10-year guarantee on the living wall module, 12 months guarantee for everything else. Recycled content: Living wall module contains 100% recycled plastic. Recyclability: Living wall module is recyclable, can reuse soil and plants where appropriate. Country of origin: UK. |
| Recyclability | Living wall module is recyclable, can reuse soil and plants where appropriate |
| Recycled content | Living wall module contains 100% recycled plastic |
