ANS Helping Hand Bracket System - Modular Living Green Wall System
Verified by manufacturer 5 months ago
Alcumus SafeContractor
Certificate type
Health & Safety Accreditation
Certificate type

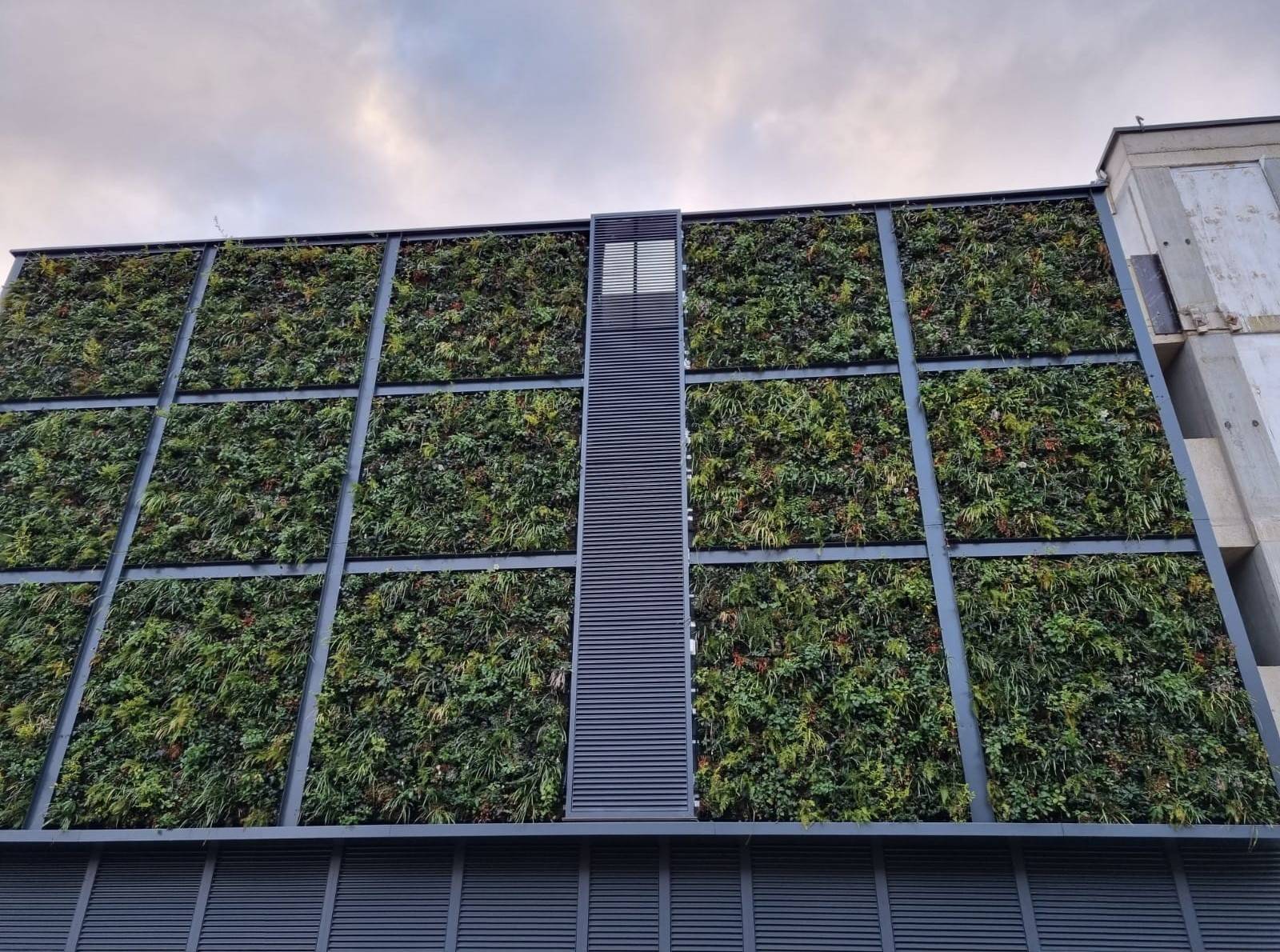

The ANS system™ is a nature-based solution with organic substrate enhancing biodiversity maximising the score on the BNG metrics. This can be installed or retrofitted as a rainscreen cladding.
Application
Modular living green wall system.
Description
Modular living green wall system with helping hand bracket build-up
System build-up:
- Helping hand 'L' bracket.
- Vertical 'T' rail.
- Breathable membrane.
- Hanging rails.
- ANS LW Modules.
- Dripper pipe.
- Mechanical fixings.
General information
Color | Black |
Finish | Matt |
Material | Polypropylene |
Shape | Rectangle |
Length | 100 mm Guidance for specification option: Depth. |
Width | 250 mm |
Height | 500 mm |
Warranty description | Other |
Uniclass | |
CAWS | Q38/120 Modular green wall system |
Specification data - Modular unit vertical planting systems
Breather membrane | Cortex® 0520FR Class B Breather Membrane.Guidance for specification option: Cortex® 0520FR is a highly UV resistant external breather membrane (1500 x 50 000 mm). for facades that achieves class B-s1,d0 according to EN 13501-1. The membrane is watertight yet breathable which makes it suitable for facades with open or closed joints to facilitate the escape of moisture. |
Secondary support structure | Helping hand bracket system.Guidance for specification option: System components:
|
Irrigation | Living wall irrigation with tank. Aster drip line.Guidance for specification option: The irrigation system includes the following components: GSM unit, irrigation controller, valves, Irrigation tank with submersible pump, 25 litre irrigation tank and Dosatron. |
Modular panels | |
Type | ANS living wall module.Guidance for specification option: 495 x 250 x 100 mm. ANS living wall corner module. |
Growing medium | Organic growing medium. |
Planting | 80 plants per m². |
Gutters | Square line gutter. |
System accessories | Cortex® UV Facade Tape.Guidance for specification option: For sealing overlaps, joints and penetrations in the breather membrane. Cortex® Double-Sided Tape.Guidance for specification option: Used to bond the breather membrane to the substrate. |
Fixing | DrillFast® Stainless DF3-SS. Guidance for specification option: Stainless steel 1.4301 (304M) grade self-drilling fasteners for roofing and cladding. |
Design | As per drawing. |
Colours | Black. RAL colour. Guidance for specification option: Insert requirements. |
Controller | Heron (or similar approved). |
Lighting | Can be developed if required with horticultural lighting expertise. |
NominalThickness | 100 mm. |
Weight | 68 kg/m². |
Fire performance | B-s2-d0. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polypropylene |
Recyclability | 100% recylable |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
