This product is no longer available

Application

Outdoors, flat non-corrugated roofs with up to 30° slope.

Description

Green roof system for quick and easy installation using a protection fleece plus GrufeTiles, which includes sedum and are clipped together on the protection fleece. The GrufeTiles also protect the waterproofing for a longer-lasting roof. No immediate aftercare is required at installation. Each GrufeTile comes to site fully established with 12-month pre-grown vegetation, eliminating the need for irrigation.

The GrufeKit can be laid directly on top of the waterproofing surface with the protection fleece. While this can save costs, the side view of the module may not be desirable for some projects. A stone border can also provide a pleasing visual effect. In some cases, this is required on commercial buildings as a firebreak by planning authorities.

The aluminium GrufeGuard is optionally available for a more professional finish. A standard parapet or upstand is a good way to finish the roof and the GrufeKit can either run to the upstand or have a stone margin.

Sloped roofs with a gradient of 16° or less can be treated as a standard flat roof. For gradients more than 16°, either GrufeGuard (fixed to the waterproof membrane using IFPs across the roof in front of the modules) or 4 x 2" restraining timber battens can be installed prior to waterproofing, depending on roof conditions (battens require a gap for water drainage every 1.5 m).

Features and benefits:

  • No mowing, no watering and no replanting.
  • Sedum is a perennial (evergreen) plant.
  • Fully established plants for instant impact.
  • One-year guarantee.
  • UV resistant module.
  • Temperature range: -50 to +80°C.

Application:

Outdoors, flat non-corrugated roofs with up to 30° slope.

General information
Finish

Sedum

Features

Attractive appearance, improved air quality, increased biodiversity, increased sound insulation, outdoor structural protection, temperature regulation, easy to install and maintain, fast delivery and stockholding

Material

Fleece, polypropylene (PP), growing media and pre-planted sedum

Shape

Square modules

Size

540 x 540 x 90 mm modules

WarrantyDescription

10-year guarantee on the living wall module, 12 months guarantee for everything else

Uniclass 2015
Extensive green roof systems (Ss_45_40_47_28)Primary
Specification data - Extensive green roof systems
Product Reference

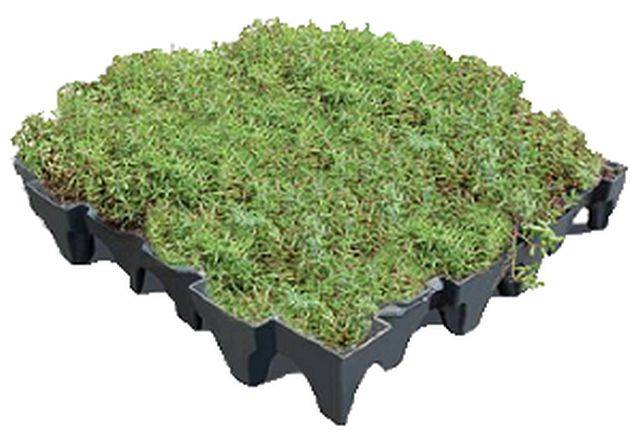

ANS GrufeKit Green Roof System - Sedum

Protection -
Protection layer

Protection fleece

Root barrier

Roof barrier included within planted module

Moisture control -
Drainage layer

Corrugated base of planting module

Planting systems -
Planting medium

Natural soil

Vegetation

Growing media and pre-planted sedum

Edge restraints

GrufeGuard aluminium edging

Scottish pebble borders and paths

Timber batons

For roof pitches greater than 16°.

Module -
Compressive strength

2000 kg/m²

Water holding capacity

20 L/m²

Drainage surface

318 cm²/m²

Outflow volume

40 L/m²

Standard product features

Colour:

Varies.

Features:

Attractive appearance, improved air quality, increased biodiversity, increased sound insulation, outdoor structural protection, temperature regulation, easy to install and maintain, fast delivery and stockholding.

Finish:

Sedum.

Material:

Fleece, polypropylene (PP), growing media and pre-planted sedum.

Shape:

Square modules.

Size:

540 x 540 x 90 mm modules.

Warranty description:

10-year guarantee on the living wall module, 12 months guarantee for everything else.

Recycled content:

Carrier material is 100% regenerated, growing media is 100% recycled.

Country of origin:

UK.

Environmental information
Recycled content

Carrier material is 100% regenerated, growing media is 100% recycled
