The ANS GrufeKit Green Roof System includes everything that you need for quick and easy installation using a protection fleece, plus GrufeTiles, which include the sedum.
Outdoors, flat non-corrugated roofs with up to 30° slope.

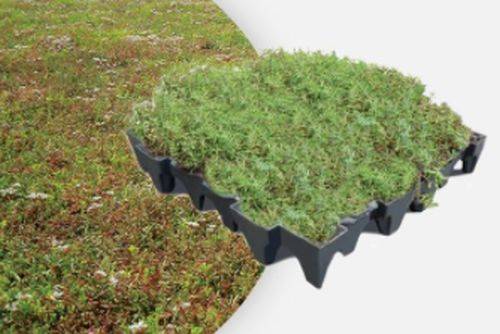

Green roof system for quick and easy installation using a protection fleece plus GrufeTiles, which includes sedum and are clipped together on the protection fleece. The GrufeTiles also protect the waterproofing for a longer-lasting roof. No immediate aftercare is required at installation. Each GrufeTile comes to site fully established with 12-month pre-grown vegetation, eliminating the need for irrigation.
The GrufeKit can be laid directly on top of the waterproofing surface with the protection fleece. While this can save costs, the side view of the module may not be desirable for some projects. A stone border can also provide a pleasing visual effect. In some cases, this is required on commercial buildings as a firebreak by planning authorities.
The aluminium GrufeGuard is optionally available for a more professional finish. A standard parapet or upstand is a good way to finish the roof and the GrufeKit can either run to the upstand or have a stone margin.
Sloped roofs with a gradient of 16° or less can be treated as a standard flat roof. For gradients more than 16°, either GrufeGuard (fixed to the waterproof membrane using IFPs across the roof in front of the modules) or 4 x 2" restraining timber battens can be installed prior to waterproofing, depending on roof conditions (battens require a gap for water drainage every 1.5 m).
Features and benefits:
Application:
Outdoors, flat non-corrugated roofs with up to 30° slope.
Finish | Sedum |
Color | Varies |
Features | Attractive appearance, improved air quality, increased biodiversity, increased sound insulation, outdoor structural protection, temperature regulation, easy to install and maintain, fast delivery and stockholding |
Material | Pre-planted sedum, HDPE, fleece |
WarrantyDescription | 1 Year warranty |
Uniclass 2015 | |
CAWS | Q37/130 Extensive green roof |
Product Reference | ANS GrufeKit Green Roof System - Sedum |
Protection | - |
Protection layer | Protection fleece |
Root barrier | Roof barrier included within planted module |
Moisture control | - |
Drainage layer | Corrugated base of planting module |
Planting systems | - |
Planting medium | Natural soil |
Vegetation | Growing media and pre-planted sedum |
Edge restraints | GrufeGuard aluminium edgingScottish pebble borders and pathsTimber batonsFor roof pitches greater than 16°. |
Module | - |
Compressive strength | 2000 kg/m² |
Water holding capacity | 20 L/m² |
Drainage surface | 318 cm²/m² |
Outflow volume | 40 L/m² |
Standard product features | Colour: Varies. Features: Attractive appearance, improved air quality, increased biodiversity, increased sound insulation, outdoor structural protection, temperature regulation, easy to install and maintain, fast delivery and stockholding. Finish: Sedum. Material: Fleece, polypropylene (PP), growing media and pre-planted sedum. Shape: Square modules. Size: 540 x 540 x 90 mm modules. Warranty description: 10-year guarantee on the living wall module, 12 months guarantee for everything else. Recycled content: Carrier material is 100% regenerated, growing media is 100% recycled. Country of origin: UK. |
Recycled content | Carrier material is 100% regenerated, growing media is 100% recycled |
