Description

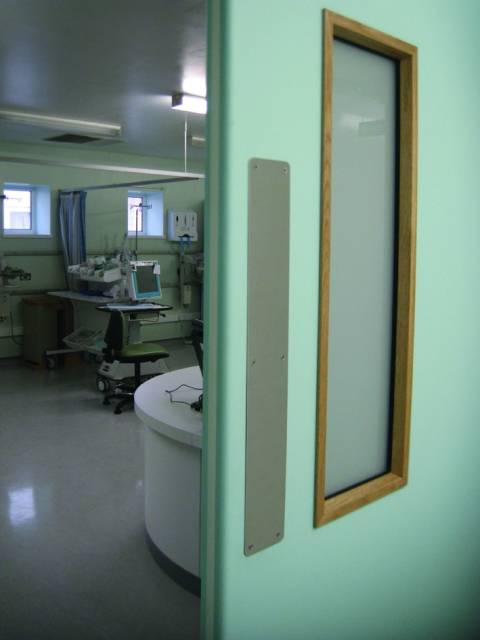

Post formed doorset which has been developed to meet the requirements for hygienic areas in health, education, commercial and recreational buildings where the prevention of the growth of bacteria on surfaces is an important consideration.

The use of rounded vertical edges to door leaves and all frame edges combined with the process of post-forming allows a variety of plastics and laminates to be bonded to doors and frames, providing a joint free surface which is both easy to clean and damage resistant.

Can be supplied with glazed vision panels and to both FD30 and FD60 specification.

General information
Uniclass 2015
Wood doorsets (Pr_30_59_24_97)Primary
Specification data - Wood doorsets
Product Reference

Anoform Doorset

Fitted with lead in frames and glass.

Anoform Ultra Doorset

FireResistanceRating

Non fire rated

FD30

FD30S

FD60

FD60S

As schedule

Insert details.

Sound insulation rating

Not required

48 mm thick door leaf, up to 32 dB Rw

58 mm thick door leaf, up to 34 dB Rw

As schedule

Insert details.

Mechanical strength

Not applicable

DD171 Severe duty

As schedule

Insert details.

FSC timber

Not required

FSC mixed sources

As schedule

Insert details.

Door leaf -
Core

48 mm thick

With perimeter softwood timber framed construction around a particleboard core (27 kg/m²) and faced with 3 mm thick MDF substrate to both faces.

58 mm thick

With perimeter hardwood timber framed construction around a particleboard core (34 kg/m²) and faced with 6 mm thick MDF substrate to both faces.

Facings

PVC finish

Insert requirements, various options available, consult manufacturer for details.

As schedule

Insert details.

Lippings

All door leaf vertical edges post formed 8 mm radius

Meeting stiles

Not required

Square, vertical

As schedule

Insert details.

Vision panels -
Type

Type A, rectangular

Insert size requirements.

Type A, square

Insert size requirements.

Type B

Circular, 250–500 mm diameters available. Insert requirements.

Cleanview double glazed non fire rated flush glazed

400 x 400 mm (h x w) with 6 mm clear toughened glass.

Cleanview double glazed non fire rated flush glazed

400 x 400 mm (h x w) with 6 mm clear toughened glass.

Cleanview triple glazed FD30, 750 x 200 mm (h x w)

With certified fire glass and 6 mm clear toughened glass.

Cleanview triple glazed FD60, 750 x 200 mm (h x w)

With certified fire glass and 6 mm clear toughened glass.

Cleanview triple glazed FD30, 750 x 250 mm (h x w)

With certified fire glass and 6 mm clear toughened glass.

Cleanview triple glazed FD60, 750 x 250 mm (h x w)

With certified fire glass and 6 mm clear toughened glass.

Cleanview vision panels fitted with integral privacy blind

Cleanview vision panels fitted with lead glass for radiology applications

Cleanview vision panels fitted with laser shielding application

As schedule

Insert details.

Glazing

Non fire rated with 6.4 mm laminated safety glass

1.9 m², maximum.

FD30 integrity only, 6 mm Georgian wired polished plate

1.9 m², maximum.

FD30 integrity only, 7 mm clear Pyrobelite

1.9 m², maximum.

FD30 integrity only, 7 mm clear Pyroguard

1.14 m², maximum.

FD60 integrity only, 11 mm clear Pyroguard

0.87 m², maximum.

FD60 integrity only, 12 mm clear pyrobelite

1.9 m², maximum.

Beading

PVC wrapped

Door frame -
Timber species

Hardwood

Non-fire rated and up to FD60. Insert species and cut.

MDF

Non-fire rated and up to FD60.

As schedule

Insert details.

Colour/ Finish

PVC wrapped

Insert finish required.

Ironmongery

Not required

100 x 30 mm satin stainless steel (grade 13) butt hinges with radiused corners

100 x 30 mm satin stainless steel (grade 11) lift off pin hinges with radiused corners

Standard product features

Fire resistance rating:

Tested in accordance with BS 476–22:1987, in accordance with manufacturers certified tested dimension and published technical manual.

Sound insulation rating:

Tested in accordance with BS EN ISO 140–3:1995 with results expressed as a single weighted index in accordance with BS EN ISO 717–1:1997.

Moisture content on delivery:

6% for door cores with hardwood lippings 10% (±2%).

Product Options

Door frame:

Non fire rated, FD30 and FD60 door frames to be approved hardwood (640 kg/m²) or moisture resistant MDF (700 kg/m²) wrapped in thermoplastic PVC and fitted with approved/ tested intumescent strips/ smoke seals.
