Timber doorset.

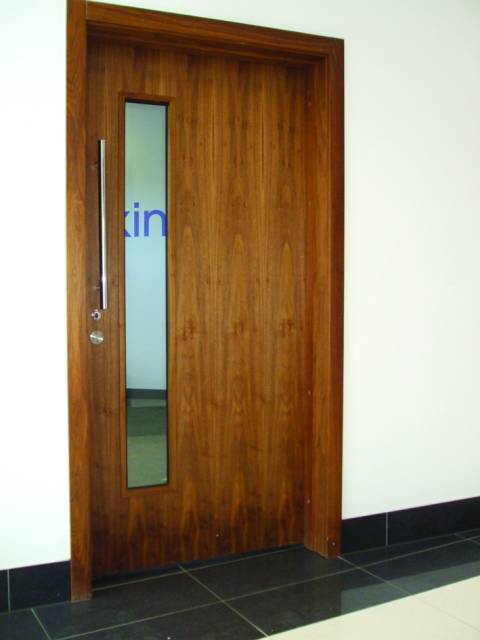

The ANODOOR construction utilizes the stability and flexibility of multi-layer particleboard. Highly versatile and suitable for most internal location requirements.
Tested to BS 476–22:1987 suitable for single and double leaf applications, available with the option of a vision panel in various designs and extensively tested to BS EN ISO 140–3:1995 with acoustic ratings up to and including 35dB.
Uniclass 2015 | |
CAWS | L20/410 Wood doorsets L20/55 Doorsets |
Product Reference | Anodoor DoorsetAnodoor Ultra Doorset |
FireResistanceRating | Non fire ratedFD30FD30SFD60FD60SAs scheduleInsert details. |
Sound insulation rating | Not requiredUp to 31 dB Rw, double 44 mm thickUp to 32 dB Rw, single 44 mm thickUp to 32 dB Rw, double 54 mm thickUp to 34 dB Rw, single 54 mm thickAs scheduleInsert details. |
Mechanical strength | Not applicableDD171 Severe dutyAs scheduleInsert details. |
FSC timber | Not requiredFSC mixed sourcesAs scheduleInsert details. |
Door leaf | - |
Core | 44 mm door with graduated density particleboard (570–630 kg/ m³)Anodoor standard; weight: 27 kg/ m². 54 mm door with graduated density particleboard (570–630 kg/ m³)Anodoor standard; weight: 34 kg/ m². 44 mm door with multi laminated hardwood coreAnodoor Ultra; weight: 27 kg/ m². 54 mm door with multi laminated hardwood coreAnodoor Ultra; weight: 34 kg/ m². |
Facings | Laminate finishInsert requirements, various options available, consult manufacturer for details. Primed paint finish on 'Kraft' foil face paperVeneer with factory applied 20% clear sheen UV lacquerInsert requirements, various species available, consult manufacturer for details. As scheduleInsert details. |
Lippings | Concealed lipping to all four edges, 10 mm thick hardwood with factory applied clear lacquerInsert species and finish requirements. Exposed lipping to all four edges, 10 mm thick hardwood with factory applied clear lacquerInsert species and finish requirements. Exposed 5 mm chamfered lipping to all four edges, 10 mm thick hardwood with factory applied clear lacquerInsert species and finish requirements. |
Meeting stiles | Not requiredRebated, horizontalRebated, verticalSquare, horizontalSquare, verticalAs scheduleInsert details. |
Vision panels | - |
Type | Type A, rectangularInsert size requirements. Type A, squareInsert size requirements. Type BCircular, 250–500 mm diameters available. Insert requirements. Cleanview double glazed non fire rated flush glazed400 x 400 mm (h x w) with 6 mm clear toughened glass. Cleanview double glazed non fire rated flush glazed400 x 400 mm (h x w) with 6 mm clear toughened glass. Cleanview triple glazed FD30, 750 x 200 mm (h x w)With certified fire glass and 6 mm clear toughened glass. Cleanview triple glazed FD60, 750 x 200 mm (h x w)With certified fire glass and 6 mm clear toughened glass. Cleanview triple glazed FD30, 750 x 250 mm (h x w)With certified fire glass and 6 mm clear toughened glass. Cleanview triple glazed FD60, 750 x 250 mm (h x w)With certified fire glass and 6 mm clear toughened glass. Cleanview vision panels fitted with integral privacy blindAs scheduleInsert details. |
Glazing | Non fire rated with 6.4 mm laminated safety glass1.9 m², maximum. FD30 integrity only, 6 mm Georgian wired polished plate1.9 m², maximum. FD30 integrity only, 7 mm clear Pyrobelite1.9 m², maximum. FD30 integrity only, 7 mm clear Pyroguard1.14 m², maximum. FD60 integrity only, 11 mm clear Pyroguard0.87 m², maximum. FD60 integrity only, 12 mm clear pyrobelite1.9 m², maximum. |
Beading | Flush glazing beadTo suit non-fire, FD30 or FD60 rated vision panel. Hardwood primedFor on-site top coat. Hardwood sections with clear lacquerConsult manufacturer for details and insert requirements. Hockey stick angled glazing beadSuitable for non-fire, FD30 or FD60 vision panels fixed in position with angled pins. Square glazing beadTo suit non-fire, FD30 or FD60 rated vision panel. |
Door frame | - |
Type | INT-DAUp to FD60. Rectangular double action, minimum dimensions 70 x 32 mm (30 mm for MDF) with 5 mm deep scalloped recess to accept 44/ 54 mm radius edge doors. INT-LSUp to FD60. Rectangular single action, minimum dimensions 70 x 32 mm (30 mm for MDF) having separate timber stop 32 x 12 mm. INT-REUp to FD60. Rebated single action with integral machined stop 32 x 12 mm for 44/ 54 mm doors. INT-SPUp to FD60. Split frame with integral radiused architraves 14 x 49 mm (w x t) overall, having separate plant on stop 17 x 49 mm (w x t) primed hardwood. As scheduleInsert details. |
Colour/ Finish | Factory finished lacqueredHardwood, insert species and cut required. PVC wrappedINT-SP only, insert finish required. Primed paint finish |
Architraves | - |
Type | AR-T-301, 45 x 18 mm with square edgesAR-TO-02, 45 x 18 mm with single pencil round edgeAR-TO-03, 45 x 18 mm with single chamfered edgeAR-TO-04, 69 x 19 mm with square edgesAR-TO-05, 69 x 19 mm with single pencil round edgeAR-TO-06, 69 x 19 mm with single chamfered edgeINT-SP integral, 49 x 14 mm |
Timber species | Hardwood, factory applied UV clear lacquered finishMDF, primed paint finishSoftwood, primed paint finishAs scheduleInsert details. |
Ironmongery | Not required100 x 30 mm satin stainless steel (grade 13) butt hinges with radiused corners100 x 30 mm satin stainless steel (grade 11) lift off pin hinges with radiused corners |
Standard product features | Fire resistance rating: Tested in accordance with BS 476–22:1987, in accordance with manufacturers certified tested dimension and published technical manual. Sound insulation rating: Tested in accordance with BS EN ISO 140–3:1995 with results expressed as a single weighted index in accordance with BS EN ISO 717–1:1997. Fitted with all approved acoustic seals and drop down threshold seal. Moisture content on delivery: 6% for door cores with hardwood lippings 10% (±2%). Door leaf core: Anodoor Ultra options have perimeter softwood timber framed construction around a particleboard core and are faced with 3 mm thick moisture resistant MDF substrate to both faces. |
Product Options | Door frame:
|
