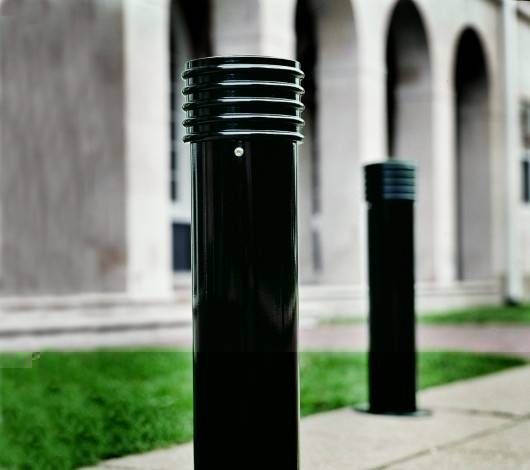

Annapolis Bollard
Description

Annapolis bollards are manufactured from structural grade steel for exceptional strength, with a cast aluminium top and spun aluminium base ring. Available with or without low-voltage lighting.


Features and benefits:

Annapolis™ Standard Bollard:

  • Available in 152 and 305 mm diameter, with or without low-voltage LED lighting.
  • A protective polyethylene sleeve is available in black or silver.
  • Both sizes are designed to be securely embedded in concrete.
  • For additional site flexibility, the 152 mm diameter is offered in a surface mounted and a removable style; slides into supplied, embedded, galvanized steel socket.
  • A keyed lock secures the bollard when in the socket.
  • Upon removal, a cover plate fits flush with the surface; secured with a chain.
  • Cover plate/ chain stores within the bollard base when the bollard is in the socket.
  • All 152 mm styles may be fitted with the Smart bollard top to provide solar powered lighting.

Annapolis™ Smart Bollard:

  • Available in 152 mm diameter, may be specified with embedded or removable bollard style.
  • The solar panel is encapsulated in patented domed housing.
  • Uses a sealed lead-acid rechargeable battery which delivers extremely reliable power output over a long period of time.
  • The microprocessor technology automatically turns lights on at dusk, off at dawn.
  • It casts directional light above ground with 360 degree visibility and a range exceeding one mile.

Annapolis™ Security Bollard:

  • Available in 152 and 305 mm diameter. 152 mm diameter security bollard may be specified with Smart solar-powered LED light.
  • Security bollard is designed to be permanently embedded with a reinforced footing and internal concrete/ steel reinforcement.


Electrical:

  • Nominal battery voltage: 6 V.
  • Lamp colour temperature: 3500 K.
  • LED luminous flux: Solar: 30 lumens; Hardwired: 50 lumens.
  • Capacity: 7.0 Ah at 20 hour discharge rate.
  • Drive current: 350 mA.
  • Lamp: Three Osram white LEDs.
  • Lens: Translucent acrylic.
  • IP rating: IP66 for solar light assembly.


LED lighting products are warrantied for six years.


General information

Finish

Powder coated

All metal is Panguard II polyester Powder-coated which is a hard yet flexible finish that resists rusting, chipping, peeling and fading. A wide selection of optional and custom colours is available upon request.

Material

Steel

Size

838 x 152 mm

838 x 305 mm

Uniclass 2015

Pr_20_76_08_10 Carbon steel bollardsPrimary

CAWS

N91/555 Waymarker post/ bollard

Q50/190 Bollards

Q50/196 Removable bollards

Q50/30 Street furniture

Specification data - Carbon steel bollards Enhanced data

Dimensions

-

Size and profile

838 x 152 mm.

Annapolis™ Standard Bollard, Annapolis™ Smart Bollard; Annapolis™ Security Bollard.



838 x 305 mm.

Annapolis™ Standard Bollard; Annapolis™ Security Bollard.



Finishes

-

Applied finish

Powder coated.

All metal is Panguard II polyester Powder-coated which is a hard yet flexible finish that resists rusting, chipping, peeling and fading. A wide selection of optional and custom colours is available upon request.

Colour

Black.

Buttercup.

Cranberry.

Ivy.

Matte black.

Ocean.

Stormcloud.

White.

Bronze.

Metallic.


Mercury.

Metallic.


Silver.

Metallic.


Steel.

Metallic.


Stone.

Metallic.


Titanium.

Metallic.


Flambé orange.

2013 colour series, available at additional cost.

Product Reference

Annapolis Bollard

Type

152 mm diameter bollard.

305 mm diameter bollard.

Protective sleeve

Not required.

Black.

Silver.

Lighting bollard top

Not required.

Standard Bollard.

Required.

Smart Bollard.

Fixing

Embedded.

Security Bollard.

Removable.

Not 152 mm diameter.

Surface mounted.

Not 152 mm diameter.
