Ancon 25/14 Brick Tie Channel

Name: Ancon 25/14 Brick Tie Channel
Brand: Leviat
SKU: 5Hj4wz7DkSgS3RrTp9TcY5

Verified by manufacturer 3 months ago

Stainless steel slot tie channel for use with partial fill insulation.

Jump to:

Application

Suitable for fixing to steel and concrete.

This system is suitable for use with a maximum combined insulation and backing board thickness of 220 mm.

When using rigid insulation board up to a depth of 220 mm and Knauf Insulation Earthwool RainScreen Slab and ROCKWOOL Rainscreen Duo Slab up to 180 mm, Ancon high-thread fixing screws can be used without a Compression Sleeve.
When using other thicknesses of these insulations or other semi-rigid/flexible insulations, an Ancon Compression Sleeve (the same depth as the insulation) should be used around the fixing screws to provide the necessary support.

Consult manufacturer for information.

Stainless steel slot tie channel for use with partial fill insulation.

Features and benefits:

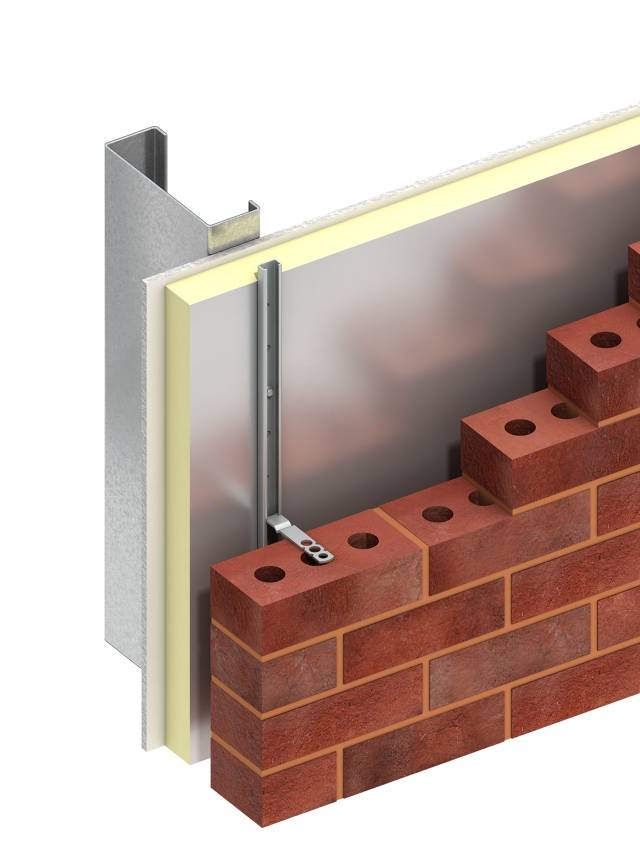

Designed to tie brickwork external walling to a light steel or concrete frame.
Self-drilling, high-thread screws fix through the channel and the insulation into the steel.
Wall ties are located within the channel and built into the joints of the outer leaf brickwork.
Vertical channels are fixed to the steel studs through insulation boards placed in the cavity.
Pre-punched holes are positioned at close centres to ensure a fixing position is always located near the end, even when the channel is cut on site.
The channel has a 16 mm opening to easily accommodate a drive socket and washer for the fixing of screws
Alternate 5.3 mm and 9.5 mm diameter holes allow different fixings. The smaller holes should be used when fixing to steel or timber with Ancon High-Thread Screws and the larger holes accommodate fixings for concrete.
Ancon SD25 ties are available in various lengths and are located in the channel by rotating through 90º and can be positioned at any point along the channel length and are built into the masonry bed joints of the outer leaf of brickwork.
Suitable for use with all insulation types.
CE marked.
Ancon provides a design warranty for 60-years. When using zinc plated fixing screws, a 25-year warranty is offered.

System components:

Length	2700 mm 3000 mm

Uniclass	Pr_20_85_84_87 Surface-mounted channelsPrimary
CAWS	F30/245 Channel/ slot ties

Product range	Channel and Bolt Fixings

Length	2700 mm. 3000 mm.
Accessories	Not required. Ancon Compression Sleeves. Guidance for specification option: For use with more flexible insulations. Ancon Concrete Fixing Screws. Guidance for specification option: To accommodate a combined backing board and insulation thickness of up to 267 mm. Consult manufacturer's literature and insert product code. Ancon High-Thread Fixing Screws. Guidance for specification option: To accommodate a combined backing board and insulation thickness up to 220 mm and steel thickness 1.2–3 mm. See 'Options' below and insert product code. Carbon steel screws.
