Anchor Landmark® Segmental Retaining Wall Blocks

Anchor Landmark® Segmental Retaining Wall Blocks

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

AG

A mortarless dry build segmental retaining wall system consisting of self-finished portrait orientated concrete blocks with the appearance of riven faced stone for highest performance engineered retaining walls.

Jump to:
+44 (0) 28 8778 8112 www.ag.uk.com
Description

The Anchor® Landmark system is a dry built segmental retaining wall system suitable for any retaining wall applications, including road and bridge schemes. The blocks provide an aesthetically pleasing face to a geogrid reinforced soil structure designed by a suitably qualified and competent engineer. The layers of geogrid reinforcement are connected positively to the blocks by a unique locking mechanical connection, giving unparalleled connection strength for challenging projects.

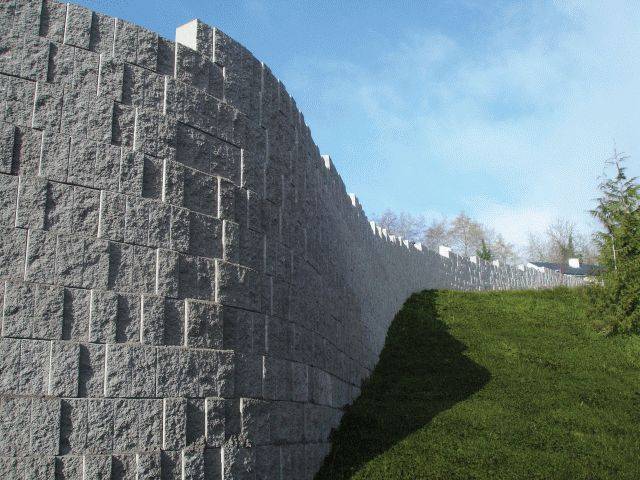

Anchor Landmark blocks are portrait orientated with a surface finish that gives the appearance of rugged, riven faced stone. They are available in multiple tones and slightly varying depths to emulate the character, warmth and variation of natural materials. The blocks incorporate a locating nib which automatically provides a uniform setback (3.8° face batter) and perfect alignment. Geogrid reinforcement is required for engineered walls over 1.2 m high. AG can provide a design service, and recommend that they are consulted early in the design process.

Please consult AG technical literature for further details.

General information

Uniclass 2015

Pr_20_93_71_15 Concrete interlocking blocksPrimary

CAWS

D41/310 Drystack interlocking masonry

Specification data - Concrete interlocking blocks

Product Reference

Anchor Landmark® Segmental Retaining Wall Foundation Block

Anchor Landmark® Segmental Retaining Wall Full Height Block, straight

Anchor Landmark® Segmental Retaining Wall Full Height Block, tapered

Anchor Landmark® Segmental Retaining Wall Half Height Block

Colour

Basalt

Cashel

Canelletto

Special shapes

Not required

Anchor Shortcut Cap

Width: 200 mm; depth: 330 mm; height: 75 mm (width is 175 mm long on short side). Weight (approx) 10.3 kg.

Accessories

None

Geogrid reinforcement and Anchor® Landmark locking bar

Required for walls in excess of 1200 mm high; the reinforcement is secured to the Landmark blocks by use of the locking bar.

Standard product features

Full Height Block; available as straight/ tapered units:

  • Dimensions (approx. w x h x d): 200 x 380 x 300/ 320 mm.
  • Compressive strength: Standard block: 24 N/mm²; BBA block: 40 N/mm².
  • Absorption rate (maximum):7%.
  • Weight (approx): 39 kg.
  • Face coverage (approx): 13.2 units/m².
  • Batter (approx): 3.8°.
  • Bond: Soldier.
  • Finish: Straight cut/ textured.

The units can be laid to internal or external radius:

  • Outside curve (minimum radius to back of block on top course): 2450 mm.
  • Inside curve (minimum radius to back of block on base course): 2100 mm.

Half Height Block:

  • Finish: Straight cut/ textured.
  • Dimensions (approx. w x h x d): 200 x 190 x 300 or 310 mm.
  • Weight (approx): 23 kg.

Foundation Block:

  • Dimensions (approx): 190 x 200 x 300 mm.
  • Weight (approx): 22 kg.

Sustainability:

  • Energy use: 100% renewable energy.
  • Water used: 100% rain water harvesting.
  • Recyclability: 100% of this product can be recycled.
  • Manufacturing location: Produced in the UK from locally sourced materials.
  • Waste wood and plastic: 100% recycled.
  • Carbon footprint: AG have a new state-of-the-art wash­ing plant which enables AG to produce walling from 100% recycled waste aggregate.
  • BREEAM rating: A+, in accordance with the Green Guide to specification.

CE marking:

CE marked; Certificate 14B/1-7-13, attestation Level 4 CPR (2011) Annex V.

Product Options

Colour:

Consult with AG for availability of colours and to obtain samples.

Accessories:

Geogrid reinforcement: Required for walls in excess of 1200 mm high - consult AG's technical department.
