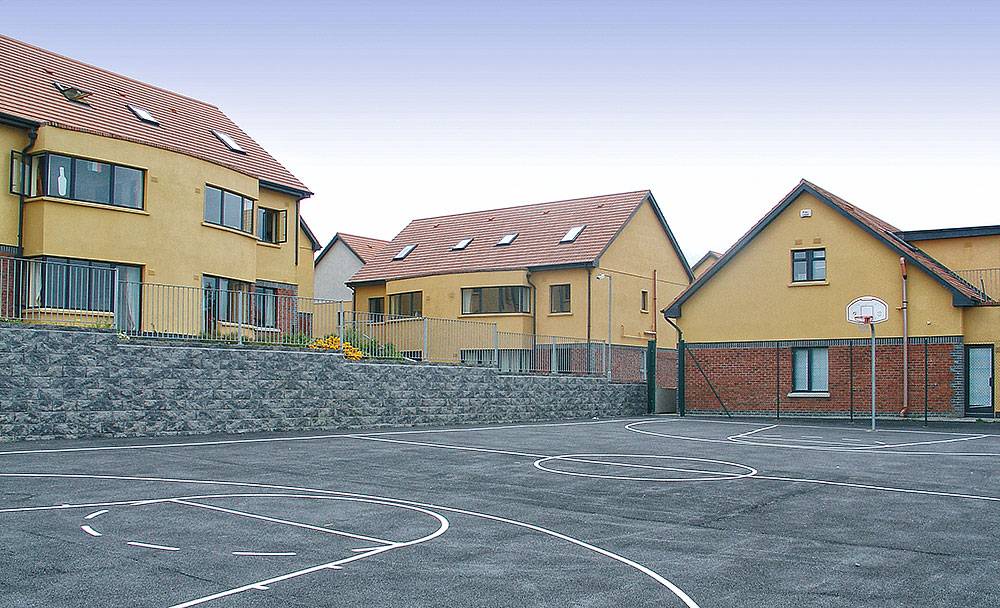

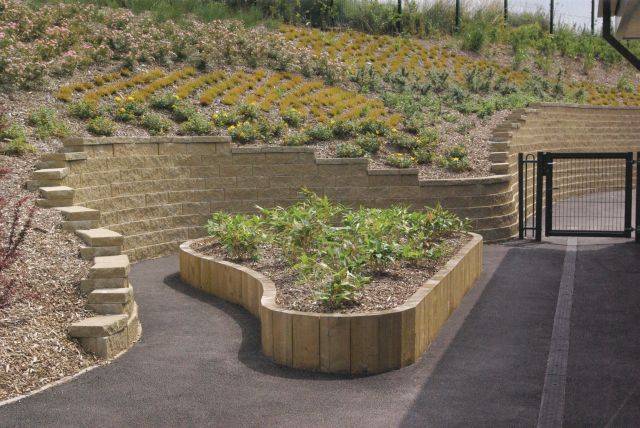

Anchor® Diamond® Walling - Retaining wall system
Verified by manufacturer 10 days ago
A mortarless dry build segmental retaining wall system consisting of self-finished concrete blocks with the appearance of riven faced stone for landscape retaining walls.
Application
Used to create retaining walls where there are no slopes above or below the wall and no surcharge.
Description
A dry build retaining wall system designed to be constructed without mortar or pins up to 1.2 m high (Diamond 30).
The blocks incorporate a patented rear lip which automatically provides a uniform setback (10.6° face batter) and perfect alignment, thus speeding installation.
The system is flexible enough to shift and expand with ground movements around the blocks and can be laid to internal or external radius.
Minimum radius:
- Outside curve (to back of block on top course): Diamond 30: 0.9 m.
- Inside curve (to back of block on base course): Diamond 30: 2.7 m.
Please consult AG technical literature for further details.
Bond:
Stretcher.
General information
Finish | Textured Other Guidance for specification option: Straight cut |
Length | 435 mm |
Width | 150 mm |
Height | 300 mm |
Uniclass | |
CAWS | D41/310 Drystack interlocking masonry |
Specification data - Concrete interlocking blocks
Standard | Manufactured to BS 771-3:2011+A1:2015 - Specification for masonry units. |
Dimensions | 435 x 150 x 300 mm.Manufacturer guidanceSize (w x h x d):
Weight (approximately):
Face coverage (approximately): 15.4 units/m². |
Finish | |
Exposed faces | Textured. |
Concealed faces | Straight cut. |
Colour | Basalt.Canelletto.Cashel.Manufacturer guidanceConsult with AG for availability of colours and to obtain samples. |
Special shapes | Anchor Shortcut Cap.Anchor Diamond® Corner. |
Accessories | None. Geogrid reinforcement. Guidance for specification option: Required for walls in excess of 1200 mm high (Diamond 30). Montagefix. Guidance for specification option: Caps and partial units should be fixed with a good quality exterior grade concrete adhesive such as Montagefix (available from AG). |
CompressiveStrength | 24 N/mm². |
Water absorption | 7%. |
Profile | Diamond 30. |
Sustainability data
Country of material origin | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidance
|
Recyclability | 100% Manufacturer guidance
|
