Anchor® Bayfield® Walling - Dry-build retaining wall system

Verified by manufacturer 4 days ago

AG Paving and Building Products Ltd Product certifications:
  • DoP

    DoP

    Certificate type

Dry build retaining walls.

Jump to:
028 8952 1275 Website

Application

Available up to 0.9 m for gravity walls (provided the ground behind the wall is no greater than a 1:3 slope) and above 0.9 m for engineered walls.

Description

Dry build retaining walls with a distressed stone finish.

Features and benefits:

  • The dry build locking system allows fast-track construction in all weathers.
  • A patented rear lip acts as a guide to ensure accurate alignment and precise set back every time.
  • Walling can be built up to 900 mm high with no concrete, mortar or geogrid.
  • The stone face is rough-hewn to give the wall a weathered textured appearance akin to natural dry-stone walling.
  • The capping block is shaped asymmetrically (tapered), making capping straight or curved walls much easier, minimizing the need for cuts.

Minimum radius:

  • Outside curve (to back of block on bottom course): 1.2 m.
  • Inside curve (to back of block on bottom course): 2.4 m.

Consult manufacturer's technical literature for further details.

Set back/ face angle:

10.6°.

Bond:

Stretcher.

General information

Color

Grey

Beige

Finish

Weathered

Shape

Rectangle

Length

435 mm

Width

250 mm

Height

150 mm

Uniclass

Pr_20_93_71_15 Concrete interlocking blocksPrimary

CAWS

D41/310 Drystack interlocking masonry

Product range

Retaining Walls

Specification data - Concrete interlocking blocks

Classification data

Standard

Manufactured to BS 771-3:2011+A1:2015 - Specification for masonry units.

Guidance for specification option:

Efflorescence state-of-the-art fact.

Dimensions

435 x 150 x 250 mm.

Manufacturer guidance

Weight (approximate):

24 kg.


Face coverage:

15.36 units/m².

Colour

Basalt.
Canelletto.
Cashel.

Special shapes

Not required.
Anchor Bayfield Corner Block.
Anchor Bayfield Shortcut Cap.

CompressiveStrength

24 N/mm².

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Manufacturer guidance

  • Energy use: 100% renewable energy.
  • Water used: 100% recycled water.
  • Recyclability: 100% of this product can be recycled.
  • Manufacturing location: Produced in the UK using responsibly sourced materials.
  • Waste wood and plastic: 100% recycled.


Product certifications

DoP

DoP

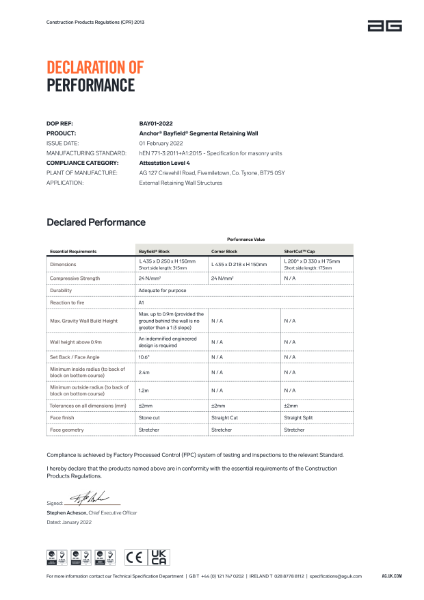

Anchor Bayfield Walling - Declaration of Performance
